Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

گواهی
چین Hai Da Labtester گواهینامه ها
چین Hai Da Labtester گواهینامه ها
نظرات مشتریان
بله ما دستگاه را هفته گذشته دریافت کردیم. ما در حال حاضر بسیار مشغول هستیم و هنوز نمیتوانم آن را امتحان کنم، اما به نظر من مناسب است.

—— Peter Maas

از طرف شرکت برای بازدید از کارخانه ها و شرکت های شما، کارکنان فنی بسیار حرفه ای و صبور هستند، فکر می کنم من خوشحال خواهم شد که دوباره با شما همکاری کنم.

—— Steve Hubbard

چت IM آنلاین در حال حاضر

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards
Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

تصویر بزرگ :  Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE,,ISO
شماره مدل: 6015 HD
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه با فیبر رزین و فیلم PP محافظت می شود، سپس در جعبه چوبی قوی با عملیات مرد قرار می گیرد
زمان تحویل: 20 روز پس از تایید سفارش
شرایط پرداخت: L/C، T/T، D/A، D/P، Western Union، MoneyGram
قابلیت ارائه: 300 ست در ماه

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

شرح
ترموکوپل: زره پوش K-Type (NICR/NIAL) ترموکوپل سیم ریز با یک غلاف به قطر 0.5 میلی متر تایمر: دامنه قابل تنظیم: 0.01-99.99 ثانیه
قطر: 0.01 میلی متر Ø 9.00 طول: 19.14±0.02mm
زاویه اریب: 0.5 ± 45 درجه توده (قبل از حفاری): 10.00 گرم ± 0.05 گرم
مواد: مس الکترولیتی با هدایت بالا پوشش سطح: کاملاً صیقلی
برجسته کردن:

GB/T 5169.15 Flammability Testing Equipment,ASTM D5207-03 Flammability Testing Equipment,IEC 60695-11-3 Flammability Testing Equipment

,

ASTM D5207-03 Flammability Testing Equipment

,

IEC 60695-11-3 Flammability Testing Equipment

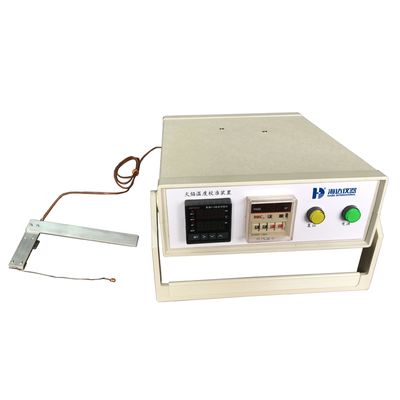

Flame Temperature Calibration Device 500W

Product Description


This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Calibration Procedure

Position the copper block 55±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 54±2 seconds to validate the flame for testing.
Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Test standard

ASTM D5207-03: Standard Practice for Confirmation of 20-mm (50-W) and 125-mm (500-W) Test Flames for Small-Scale Burning Tests on Plastic Materials. GB/T 5169.15: Fire Hazard Testing for Electric and Electronic Products - Part 15: Test Flames - 500W Flame Apparatus and Confirmational Test Methods.
IEC 60695-11-3: Fire hazard testing for electric and electronic products - Part 11-3: Test flames - 500W flames - Apparatus and confirmational test methods.

Product Specifications
Model 6015-HD
Thermocouple Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath.
Timer Adjustable range: 0.01-99.99 seconds
Copper Block Specifications
Diameter Ø9.00±0.01mm
Length 19.14±0.02mm
Bevel Angle 45±0.5°
Mass (Pre-drilling) 10.00g±0.05g
Material High-conductivity electrolytic copper
Surface Finish Fully polished
Moel6001-
