Needle Flame Test Equipment / Button-Control Needle Flame Tester

Needle Flame Test Equipment / Button-Control Needle Flame Tester
Needle Flame Test Equipment / Button-Control Needle Flame Tester

تصویر بزرگ :  Needle Flame Test Equipment / Button-Control Needle Flame Tester

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE,,ISO
شماره مدل: 6011 HD
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه با فیبر رزین و فیلم PP محافظت می شود، سپس در جعبه چوبی قوی با عملیات مرد قرار می گیرد
زمان تحویل: 20 روز پس از تایید سفارش
شرایط پرداخت: L/C، T/T، D/A، D/P، Western Union، MoneyGram
قابلیت ارائه: 300 ست در ماه

Needle Flame Test Equipment / Button-Control Needle Flame Tester

شرح
حجم اتاق: 0.5 متر مربع ، با درب مشاهده شیشه روشنایی داخلی: <20 لوکس
سوخت: گاز بوتان (خلوص 95 ≥) ؛ بدون ورود هوا به لوله مشعل ارتفاع شعله: قابل تنظیم: 1 میلی متر 12 میلی متر (شامل اندازه گیری سنج)
مکانیزم محرک: موتوری تایمر: دامنه قابل تنظیم: 0-999.9 ثانیه ؛ ضبط احتراق/مدت زمان قابل تنظیم
منبع برق: AC 220V ، 50Hz ، 1KVA
برجسته کردن:

Needle Flame Tester,needle flame test equipment,Button-Control Needle Flame Tester

,

needle flame test equipment

,

Button-Control Needle Flame Tester

Needle Flame Testing Instrument

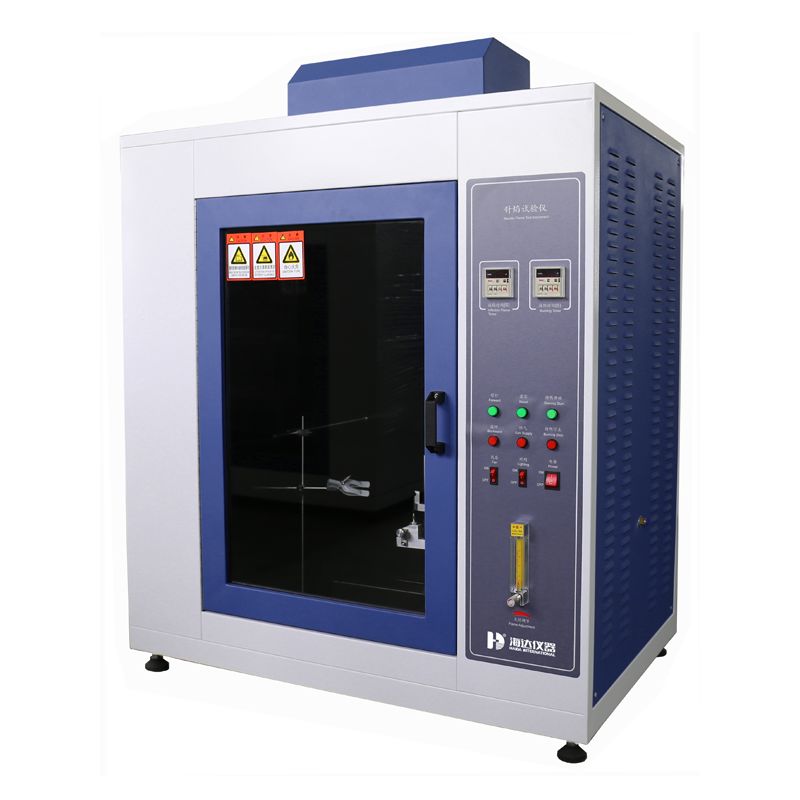

Product Description



This instrument simulates small flames generated under fault conditions (e.g., leakage currents, component overheating, poor contacts) to assess fire hazards.



Needle Flame Testing Instrument is specifically designed for evaluating fire risks in small components where glow-wire or horizontal/vertical flame tests are unsuitable. If a sample ignites during glow-wire testing, the needle flame test further analyzes combustion risks. Applicable to parts of electrical/electronic products and household appliances, such as terminal blocks, centrifugal switches, and rice cooker sockets.



This model features PLC + color LCD touchscreen control with an intuitive interface and includes a built-in printer for recording test conditions and results.

Product Specifications
Model 6011-HD
Control System 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with test data printer.
Display System 7-inch color LCD touchscreen for setting/displaying burn time, test duration, test date, print interface, and operational status.
Chamber Volume ≥0.5 m³, with glass observation door.
Internal Illuminance <20 Lux.
Fuel Butane gas (≥95% purity); no air ingress into burner tube.
Burner Specifications Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm.
Flame Height Adjustable: 12mm±1mm (includes measuring gauge).
Flame Temperature 100°C±5°C to 700°C±3°C in 23.5±1 seconds (optional temperature calibration device available).
Timer Adjustable range: 0-999.9 seconds; Configurable ignition/duration recording.
Drive Mechanism Motorized.
Key Features Automated operation: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and stable performance.
Power Supply AC 220V, 50Hz.
Moel6001-
Needle Flame Test Equipment / Button-Control Needle Flame Tester 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Needle Flame Test Equipment / Button-Control Needle Flame Tester 1Needle Flame Test Equipment / Button-Control Needle Flame Tester 2Needle Flame Test Equipment / Button-Control Needle Flame Tester 3


Needle Flame Test Equipment / Button-Control Needle Flame Tester 4Needle Flame Test Equipment / Button-Control Needle Flame Tester 5Needle Flame Test Equipment / Button-Control Needle Flame Tester 6

After-Service:

Should any issues arise during your testing process, we guarantee:

Timely Response: A formal reply within 48 hours.

Swift Resolution: A proposed solution within 3 working days.

Comprehensive Support: Access to English operation manuals, instructional videos, and video conference assistance.





Why Choose Us?

Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.

Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.

Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.

Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection

FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
