Toilet Seat Swing Life Test Machine with Adjustable Parameters

گواهی
چین Hai Da Labtester گواهینامه ها
چین Hai Da Labtester گواهینامه ها
نظرات مشتریان
بله ما دستگاه را هفته گذشته دریافت کردیم. ما در حال حاضر بسیار مشغول هستیم و هنوز نمیتوانم آن را امتحان کنم، اما به نظر من مناسب است.

—— Peter Maas

از طرف شرکت برای بازدید از کارخانه ها و شرکت های شما، کارکنان فنی بسیار حرفه ای و صبور هستند، فکر می کنم من خوشحال خواهم شد که دوباره با شما همکاری کنم.

—— Steve Hubbard

چت IM آنلاین در حال حاضر

Toilet Seat Swing Life Test Machine with Adjustable Parameters

Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters Toilet Seat Swing Life Test Machine with Adjustable Parameters Toilet Seat Swing Life Test Machine with Adjustable Parameters

تصویر بزرگ :  Toilet Seat Swing Life Test Machine with Adjustable Parameters

جزئیات محصول:
Place of Origin: China
نام تجاری: Haida
گواهی: ISO
Model Number: 5058-HD
پرداخت:
Minimum Order Quantity: 1 set
قیمت: قابل مذاکره
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month

Toilet Seat Swing Life Test Machine with Adjustable Parameters

شرح
منبع حرارت: بخاری سرامیک صفحه لمسی: ال سی دی
نمایش: صفحه LCD زمان تست: قابل تنظیم
پاسخ برای probme: طی 24 ساعت پارامترهای تست: دما ، فشار ، وزن و غیره
نتایج آزمون: داده های کمی و کیفی روشهای تست: ضربه ، سایش ، مقاومت شیمیایی و غیره
نمایش مقیاس: 1 درجه استفاده: آزمایش وسایل آشپزی برای دوام و ایمنی
چکش ضربه فولادی: داشتن جرم 1 کیلوگرم ± 50 گرم وضوح مقیاس: 1 درجه
دامنه دما: 0-300 درجه سانتیگراد سفارشی: خوشامد
تست چرخه: 15000 چرخه (قابل تنظیم) کارخانه: بله
دقت: ± 1 درجه سانتیگراد منبع تغذیه: 220 ولت
تست استوک: 20 تا 60 میلی متر (قابل تنظیم) وزن ناخالص: 210 کیلوگرم
برنامه: آزمایشگاه ، آشپزخانه حمل: از کنار دریا
وزن: 5 کیلوگرم مجوزها: Ce ، ISO
برجسته کردن:

Adjustable Parameters Swing Life Test Machine,Toilet Seat Swing Life Test Machine

,

Toilet Seat Swing Life Test Machine

5058-HD Toilet Seat Ring and Cover Swing Life Test Machine
Product Specifications
Attribute Value
Heat Source Ceramic heater
Display LCD screen
Testing Time Adjustable
Test Parameters Temperature, pressure, weight, etc.
Test Results Quantitative and qualitative data
Test Methods Impact, abrasion, chemical resistance, etc.
Temperature Range 0-300°C
Accuracy ±1°C
Power Supply 220V
Test Cyclic 15000 cyclic (adjustable)
Gross Weight 210KG
Certifications CE, ISO
Applications & Test Purpose

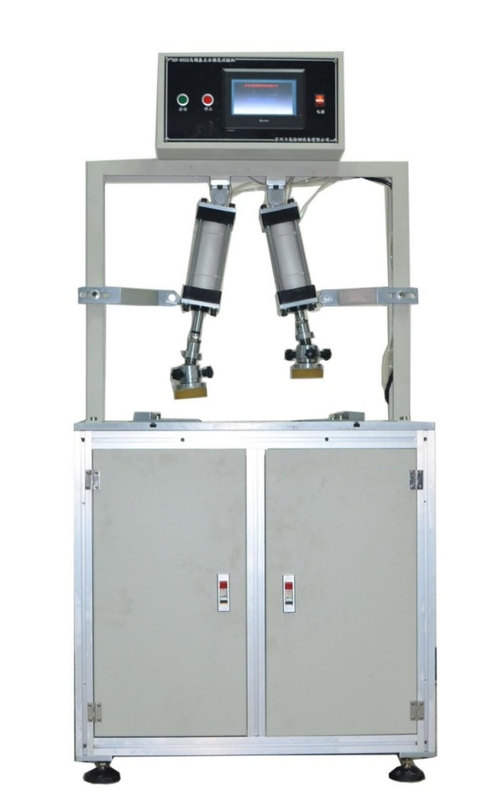

This equipment is designed for swing life testing of toilet seat rings and covers. The sample is installed on the test platform where two cylinder mechanical hands alternately push and press the seat ring and cover (1 second push with 0.5 second interval) to simulate normal use conditions.

Test Standard: JCT 764-2008 Appendix A

Standard Features
Function Swing life test of toilet seat ring and cover
Swing Thrust 0-2000N (adjustable)
Force Application Method Pressure applied by cylinder, force value adjusted via air pressure regulation
Cylinder Specifications Inner diameter φ50.8mm, stroke 127mm
Pressure Plate Specification Diameter φ76.2mm, thickness 19mm
Force Application Time 0-99.9 seconds (adjustable)
Control Mode PLC + human-machine interface
Working Cycles 0-99,999 times (adjustable)
Dimensions 1000mm * 800mm * 1500mm
Product Images

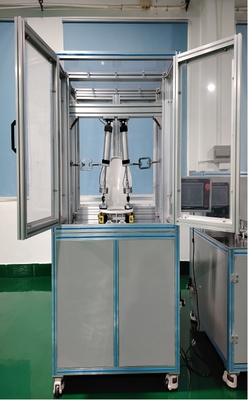

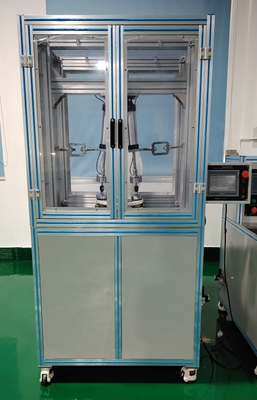

Toilet Seat Swing Life Test Machine with Adjustable Parameters 0 Toilet Seat Swing Life Test Machine with Adjustable Parameters 1 Toilet Seat Swing Life Test Machine with Adjustable Parameters 2 Toilet Seat Swing Life Test Machine with Adjustable Parameters 3
Customer Testimonials
Toilet Seat Swing Life Test Machine with Adjustable Parameters 4 Toilet Seat Swing Life Test Machine with Adjustable Parameters 5
Why Choose Haida International Equipment?
  • Design & Production: Custom solution consultation, special model R&D, cost-performance recommendations
  • Shipping & Delivery: One-stop service from production to installation and training
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
Q: What is your warranty policy?
A: We offer a 1-year warranty including technical support and parts replacement. On-site engineer service is available when necessary.
Q: What is your order process?
A: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Q: Can we visit your factory before ordering?
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport pickup.
Q: Do you offer customization services?
A: Yes, we provide both standard and fully customized machines tailored to your specific requirements.
About Haida International Equipment

Established in 2004 and located in Dongguan, Guangdong Province, China, Haida specializes in R&D and production of material testing equipment. With our own research center and four production lines (textile, footwear, leather, and mask testing equipment), we've served international markets since 2006.
