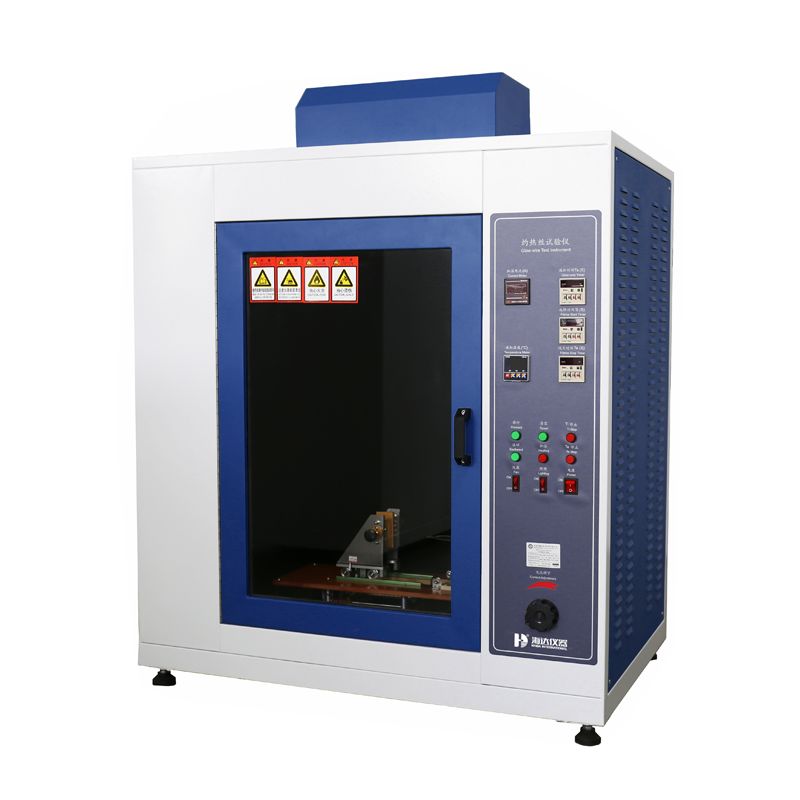

Button-Controlled Glow Wire Test Machine with AC 220V Power Supply

Button-Controlled Glow Wire Test Machine with AC 220V Power Supply
Button-Controlled Glow Wire Test Machine with AC 220V Power Supply

تصویر بزرگ :  Button-Controlled Glow Wire Test Machine with AC 220V Power Supply

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE,,ISO
شماره مدل: 6001-HD
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه با فیبر رزین و فیلم PP محافظت می شود، سپس در جعبه چوبی قوی با عملیات مرد قرار می گیرد
زمان تحویل: 20 روز پس از تایید سفارش
شرایط پرداخت: L/C، T/T، D/A، D/P، Western Union، MoneyGram
قابلیت ارائه: 300 ست در ماه

Button-Controlled Glow Wire Test Machine with AC 220V Power Supply

شرح
حجم اتاق: 0.5 متر مکعب ، مجهز به درب مشاهده شیشه روشنایی اتاقک: کمتر از 20 لوکس
نیرویی که توسط سیم درخشش بر روی نمونه اعمال می شود: 0.10n 0.95 0.95 ، با حد عمق درج 7.0 میلی متر ± 0.5 میلی متر ابعاد Verall (L × W × H): تقریبا 1015 × 650 × 1300 میلی متر (از جمله ارتفاع کاستور)
منبع برق: AC 220V ، 50Hz ، 1KVA
برجسته کردن:

Button-Controlled Glow Wire Test Machine,Glow Wire Test Machine

,

Glow Wire Test Machine

Glow-Wire Test Instrument

Product Description



In fault or overload conditions, components or parts may reach excessive temperatures or ignite nearby components.



The glow-wire test simulates the thermal stress caused by a glowing element, overloaded resistor, or similar heat or ignition source over a short period. It is used to assess the fire hazard risk using simulation techniques.

This test applies to electrical and electronic products, components, household appliance parts made of plastics, and non-metallic insulation materials, such as switch casings and relay sockets.



Test Standard

IEC60695-2-10 / 11 / 12 / 13, IEC60884-1, GB2099.1, IEC60335-1, GB4706.1, VDE0620-1, UL60065, GB/T5169.10 / 11 / 12 / 13, IEC60950, GB4943-2022
Product Specifications
Model 6001-HD
Chamber Volume ≥0.5 cubic meters, equipped with a glass observation door
Chamber Illumination Less than 20 LUX
Glow-Wire Temperature Adjustable from ambient temperature +10ºC to 1000ºC, measured using a Ø1mm nickel-chromium (K-type) imported thermocouple
Force Applied by Glow-Wire on Sample 0.95 ± 0.10N, with an insertion depth limit of 7.0mm ± 0.5mm
Glow-Wire Material Nickel/chromium alloy (>77% Ni / 20±1% Cr), with a pre-bending diameter of 4.0 ± 0.07mm; other dimensions conform to standard tolerance requirements
Timer Adjustable from 0 to 99 minutes 99 seconds, with a resolution of 0.01 seconds. Records ignition time (Ta), flame persistence time (Ti), and flame extinction time (Te)
Wooden Board White pine board, thickness >10mm, positioned 200±5mm below the sample's contact point with the glow-wire.
Product Features Fully automated control system: Once started, the sample-holding carriage automatically moves the sample to the glow-wire and returns it after the preset glow duration.
Black background interior for easy observation.
Equipped with an exhaust system and lighting.
Digital display for time and temperature, ensuring convenient observation and recording.
verall Dimensions (L×W×H) Approx. 1015×650×1300mm (including caster height)
Power Supply AC 220V,50Hz,1KVA
Moel6001

Button-Controlled Glow Wire Test Machine with AC 220V Power Supply 0











About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Button-Controlled Glow Wire Test Machine with AC 220V Power Supply 1Button-Controlled Glow Wire Test Machine with AC 220V Power Supply 2Button-Controlled Glow Wire Test Machine with AC 220V Power Supply 3Button-Controlled Glow Wire Test Machine with AC 220V Power Supply 4Button-Controlled Glow Wire Test Machine with AC 220V Power Supply 5Button-Controlled Glow Wire Test Machine with AC 220V Power Supply 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined





FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
