جزئیات محصول:
|
| استفاده: | کنترل و آزمایش کیفیت | ظرفیت ترانسفورماتور: | 1000va |
|---|---|---|---|
| سرعت ضربه: | 3.4m/s | باند: | طول 100 میلی متر |
| اندازه خارجی: | 900*500*800 (W*D*H) | زاویه ضربه: | 90 درجه |
| تستر دما: | دمای اتاق تا 200 درجه سانتیگراد | بعد: | 650mm×400×830mm |
| محدوده زمان بندی: | 3 دقیقه (می توان خودسرانه تنظیم کرد) | محدوده اندازه گیری فعلی: | 10pa ~ 1mA |
| بار فیکسچر: | 2.5N | حالت تولید ازن: | ژنراتور ازن یا روش جذب UV |
| افقی: | 500mm * 250mm * 500m | دامنه ضخامت نمونه: | 0~60 میلی متر |
| اندازه نمونه ها: | 16 میلی متر، 6-15 میلی متر (D) | مشاهده کننده: | CIE 10° ناظر استاندارد |
| مشخصات: | 20-88HRA، 20-100HRB، 20-70HRC | وضوح فشار: | 0.001MPa (0.01bar یا 1psi) |
| حالت آزمون a: | دمای اتاق | Dispaly: | دیجیتالی |
| سرعت تست: | قابل تنظیم | وزن توپ: | 5 کیلوگرم |
| بعد بیرونی: | 95x150x105cm | ضربه زدن به سکته مغزی: | 25 میلی متر |
| یکنواختی دما: | ± 2 | دقت کنترل: | ± 0.2 درجه سانتیگراد |
| برجسته کردن: | Thermal Conductivity Rubber Plastic Tester,research Rubber Plastic Tester,High Precision Rubber Plastic Tester,research Rubber Plastic Tester,High Precision Rubber Plastic Tester |
||

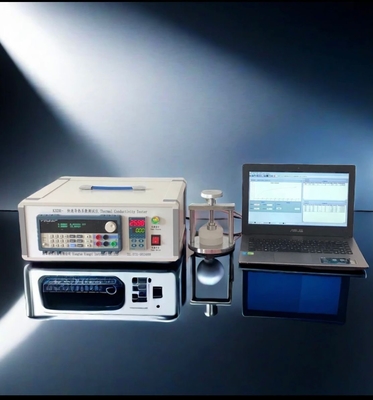

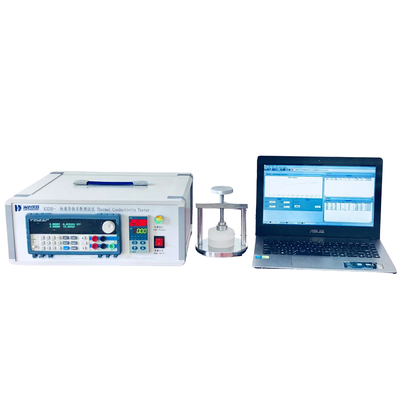

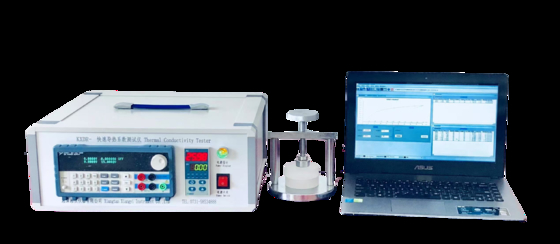

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)
![]()
Technical Parameters
| Item | Parameters |
| Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
| Measurement relative error | ≤3% |
| Repeatability error | ≤3% |
| Temperature resolution | 0.01℃ |
| Measuring time | 2~180 seconds |
| Sample test temperature range |
Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
| Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
| Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
| Sample size |
Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
| Control mode | By computer and software |
| Machine dimension | (L*W*H)380*400*165mm |
| Machine weight | Approx. 5KG |
| Power | AC 220V±10%, 50/60 Hz, 200W |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
