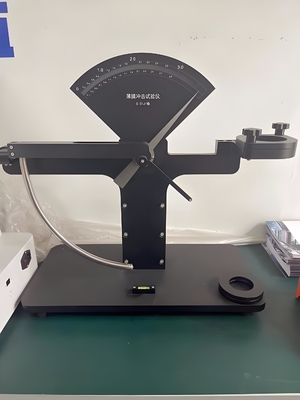

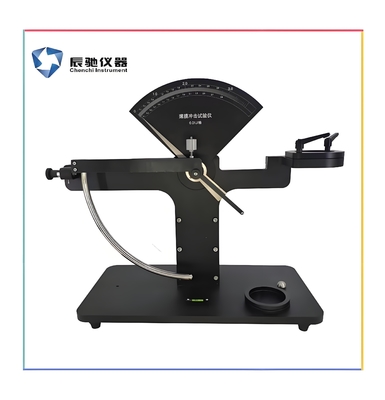

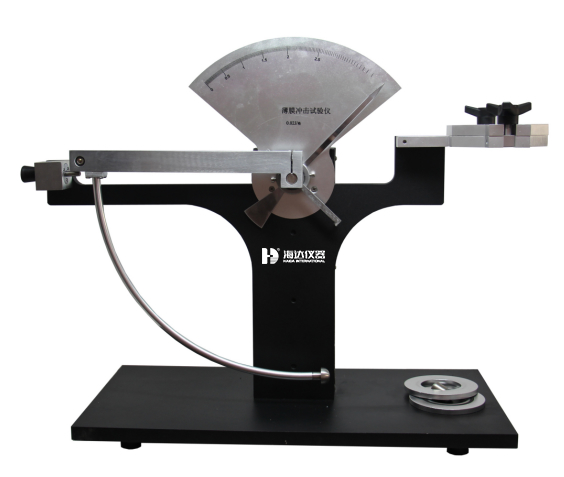

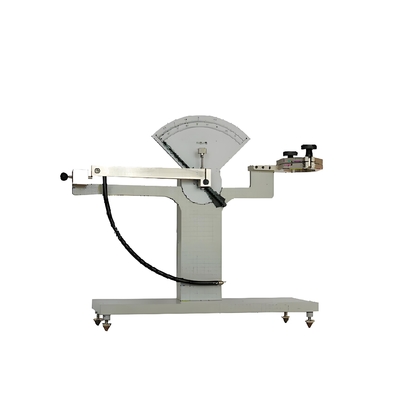

5086-HD Film Pendulum Impact Tester
Product Overview
The 5086-HD Film Pendulum Impact Tester measures the pendulum impact resistance of plastic films, sheets, and composite films using a standard pendulum head and weighted pendulum arm. Ideal for testing impact toughness of various packaging materials including food and medicine packaging films, metal foils, and paper composites.
Key Features
- Measures impact resistance of plastic films, composite films, and packaging materials
- Suitable for testing paper and paperboard impact resistance
- Digital LCD display for precise measurements
- Adjustable frequency range (60-300 round/min)
- Multiple unit options (Kgf, N, Lbf)
- Power-driven operation for consistent testing
Technical Specifications
| Attribute |
Value |
| Function |
Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test |
| Display |
LCD, Digital display |
| Units switch |
Kgf, N. (Optional), Lbf |
| Steel Ball |
16mm * 20 |
| Frequency Range |
60-300 round/min adjustable |
| Drive Mode |
Power-driven |
| Gross Weight |
120kg |
| Clamping Speed |
50-300mm/min |
| Test Speed |
12.7mm/min |
| Force Resolution |
1/500000 of the maximum test force fs |
| Power |
AC 220V，2.6A |
| Dimensions |
530(L)*490(D)*960(H)mm |
Testing Parameters
| Parameter |
Specification |
| Capacity |
3J |
| Scale value |
0.01J |
| Pendulum swing radius |
R280 mm |
| Pendulum angle |
90° |
| Impact speed |
2.5m/S |
| Impact head size |
Φ12.7 mm |
| Sample holder diameter |
Φ60, Φ89mm |
| Sample size |
100 X 100 mm |
Design Standards
Complies with GB/T8809 and ASTM D3420 testing standards.
Applications
Ideal for testing impact resistance of various materials including PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber films, metal foil materials, and paper/paperboard composites used in packaging applications.
Testing Principle
The instrument uses a semi-spherical punch to impact and break the sample at a controlled speed, measuring the energy consumed during impact to evaluate the material's anti-pendulum impact energy value.
