جزئیات محصول:
|
عمل: | تست فشرده سازی ، تست مقاومت فشاری لوله کاغذ ، تست کننده پشت سر هم ، تست کششی ، ابزار تست کاغذ | نام: | تستر فشرده سازی لوله فنجان کاغذ ، تست کاغذ ابزار کاغذ GSM تستر/ تستر مقاومت پشت سر هم ، ابزار تست کا |
---|---|---|---|
نمایش: | LCD ، نمایش دیجیتال | سوئیچ واحدها: | KGF ، n. (اختیاری) ، LBF |
حالت نمایش: | نمایشگر LCD ، حالت دیجیتال | حالت ارتعاش: | متقابل |
محرک حرکت: | پیچ توپ و موتور سروو | دامنه دامنه: | 25.4 میلی متر PP (1 اینچ) |
پشتیبانی سفارشی: | OEM ODM | استفاده: | ابزار تست کاغذ |
دامنه آزمون: | 0-2000 kPa | ویژگی: | با دقت بالا ، عملکرد آسان ، عملکرد قابل اعتماد |
ظرفیت: | 2000 کیلوگرم | دامنه فرکانس: | 60-300 دور/دقیقه قابل تنظیم |
کنترل کننده: | PLC (کنترلر منطقی قابل برنامه ریزی) | آزمون سقوط: | گوشه ها، لبه ها، وجه های نمونه |
ارتفاع سیلندر: | 50 میلی متر | دامنه اندازه گیری: | 0 1 میکروگرم G-200mgh2O (2ppm 100 ٪) |
استفاده کردن: | دستگاه تست سفتی مقوایی | منبع تغذیه: | AC 220 ولت 50 هرتز |
عملکرد: | قله | روش نمایش: | نمایش دیجیتالی |
نمایش زمان: | برای نمایش زمان در طول تست (های) | ||
برجسته کردن: | Friction Tester for Paper Packaging Testing,Film Coefficient Friction Tester,Film Coefficient Friction Tester,Film Coefficient Friction Tester,Film Coefficient Friction Tester |
Attribute | Value |
---|---|
Function | compression test, Paper Tube Compressive Strength Test, Burst tester, tensile test, Paper Testing Instrument |
Name | paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/ bursting strength tester, paper testing instrument |
Display | LCD, Digital display |
Units switch | Kgf, N. (Optional), Lbf |
Display mode | LCD display, digital mode |
Vibration Mode | reciprocating |
Movement Drive | ball screw and servo motor |
Amplitude Range | 25.4 mm P-P(1 inch) |
Customized Support | OEM ODM |
Usage | Paper Testing Instrument |
Test Range | 0-2000 kPa |
Features | High precision, easy operation, reliable performance |
Capacity | 2000KG |
Frequency Range | 60-300 round/min adjustable |
Controller | PLC (programmable logic controller) |
Drop Test | Corners, edges, faces of sample |
Cylinder Height | 50 mm |
Measuring Range | 0.1 μg-200mgH2O (2ppm~100%) |
Use | paperboard stiffness test machine |
Power Supply | AC 220V 50Hz |
Function | Peak hold |
Display Method | digital display |
Time Display | To display time during test (s) |

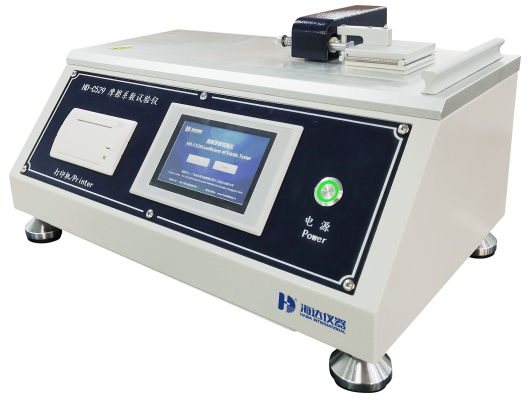

This tester complies with GB 10006-88 and ISO 8295-1986 standards. It measures dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness <0.2mm) when sliding on themselves or other materials. Also suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The friction coefficient measurement indicates product smoothness.
GB 10006-88, ISO 8295-1986
The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force value test module for uniform linear motion. Samples are secured under the handle on the weight module. During testing, the force value test module moves uniformly, calculating the friction coefficient, with results printed by the built-in printer.
Specifications | 5093-HD |
---|---|
Control mode | touch screen control |
Test stroke | 1-200mm |
Test speed | 100±10mm/min (speed adjustable) |
Slider weight | 200±2g (others can be customized) |
Upper sample size | 63mm*63mm (L*W) |
Lower sample size | 80mm*200mm (L*W) |
Force test accuracy | ±0.02N |
Measuring range | 0.001-5N (expandable) |
Instrument dimensions | Approx. 490*320*210mm (L*W*H) |
Usage environment | indoor temperature 20±10℃, relative humidity <85% |
Power supply | 1∮ AC220V |
Machine weight | Approx. 18kg |
Power | Approx. 350W |
Main test items | Determination of sliding static friction coefficient and dynamic friction coefficient of materials such as plastic film and paper |
About Haida: Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. Suitable for research institutions, quality inspection agencies, and academic fields. Complies with UL, ASTM, JIS, GB, and ISO standards.
