Infrared Water Vapor Permeability Tester for Packaging Materials

گواهی
چین Hai Da Labtester گواهینامه ها
چین Hai Da Labtester گواهینامه ها
نظرات مشتریان
بله ما دستگاه را هفته گذشته دریافت کردیم. ما در حال حاضر بسیار مشغول هستیم و هنوز نمیتوانم آن را امتحان کنم، اما به نظر من مناسب است.

—— Peter Maas

از طرف شرکت برای بازدید از کارخانه ها و شرکت های شما، کارکنان فنی بسیار حرفه ای و صبور هستند، فکر می کنم من خوشحال خواهم شد که دوباره با شما همکاری کنم.

—— Steve Hubbard

چت IM آنلاین در حال حاضر

Infrared Water Vapor Permeability Tester for Packaging Materials

Infrared Water Vapor Permeability Tester for Packaging Materials
Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials

تصویر بزرگ :  Infrared Water Vapor Permeability Tester for Packaging Materials

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE、ISO
شماره مدل: 5098 HD
پرداخت:
مقدار حداقل تعداد سفارش: 1 ست
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه با فیبر رزین و فیلم PP محافظت می شود، سپس در جعبه چوبی قوی با عملیات مرد قرار می گیرد
زمان تحویل: 20 روز پس از تایید سفارش
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram
قابلیت ارائه: 300 ست در ماه

Infrared Water Vapor Permeability Tester for Packaging Materials

شرح
عمل: تست فشرده سازی ، تست مقاومت فشاری لوله کاغذ ، تست کننده پشت سر هم ، تست کششی ، ابزار تست کاغذ نام: تستر فشرده سازی لوله فنجان کاغذ ، تست کاغذ ابزار کاغذ GSM تستر/ تستر مقاومت پشت سر هم ، ابزار تست کا
نمایش: LCD ، نمایش دیجیتال سوئیچ واحدها: KGF ، n. (اختیاری) ، LBF
حالت نمایش: نمایشگر LCD ، حالت دیجیتال حالت ارتعاش: متقابل
محرک حرکت: پیچ توپ و موتور سروو پشتیبانی سفارشی: OEM ODM
استفاده: ابزار تست کاغذ ویژگی: با دقت بالا ، عملکرد آسان ، عملکرد قابل اعتماد
کنترل کننده: PLC (کنترلر منطقی قابل برنامه ریزی) آزمون سقوط: گوشه ها، لبه ها، وجه های نمونه
روش نمایش: نمایش دیجیتالی نمایش زمان: برای نمایش زمان در طول تست (های)
منطقه ایالات متحده: ظروف آشپزی معیارهای طراحی: EN71 ANSI ، UL ، ASTM ISTA
سیستم کنترل: کنترل برنامه ریزی شده PLC منشاء: چین
روش های امتحان: الکترونیکی ، مکانیکی ، دستی وزن: قابل تنظیم
حالت انتقال: دستگاه پنوماتیک + کاهش دهنده + انتشار حالت اسکن: تک خط
استفاده کردن: مواد بسته بندی
برجسته کردن:

Infrared Permeability Tester,Packaging Materials Vapor Permeability Tester,Packaging Materials Permeability Tester

,

Packaging Materials Vapor Permeability Tester

,

Packaging Materials Permeability Tester

EQUIPMENT DETAILS 5098-HD WATER VAPOR PERMEABILITY TESTER (INFRARED METHOD)
Product Specifications
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display
Units switch Kgf, N. (Optional), Lbf
Control System PLC Programmed Control
Test Methods Electronic, mechanical, manual
Design Criteria EN71 ANSI, UL, ASTM ISTA
Features High precision, easy operation, reliable performance
Product Description
This infrared moisture analysis-based tester provides wide-range, high-efficiency water vapor transmission rate testing for medium and high water vapor barrier materials. It is suitable for testing plastic films, composite films, high barrier materials, backboards, sheets, paper, metal foils, and various packaging materials across industries including food, medicine, medical equipment, daily chemicals, and photovoltaic electronics.
Test Standards
GBT 26253, ISO 15106-2, ASTM F1249, TAPPI T557, JIS K7129, ISO 15106-3, DIN 53122-2, YBB 00092003
Key Features
  • Laser pulse modulated infrared sensor with long optical path absorption for higher measurement accuracy
  • Three independent test chambers for simultaneous testing of identical or different samples
  • Computer-controlled fully automated test process with one-button operation
  • High-quality components ensure instrument stability and reliability
  • Automatic test execution with parameter settings and result saving
  • Real-time test status monitoring with intelligent software for data analysis
  • Self-detection capabilities and power-off data storage protection
  • Precise automated temperature and humidity control for various test conditions
  • Multiple test process judgment modes (manual, proportional, cyclic)
  • Expandable test range for large transmittance testing requirements
Technical Specifications
Measuring range (membrane) 0.01~40 g/(m²*day) (standard)
0.1~1000 g/(m²*day) (optional)
Resolution 0.001 g/(m²*day)
Number of samples 1~3 pieces
Sample size φ110mm
Temperature control range 5℃~65℃ (constant temperature water bath)
Temperature control accuracy ±0.1℃
Humidity control range 0% RH, 5%~90%RH, 100%RH
Humidity control accuracy ±1%RH
Industry Applications
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They comply with UL, ASTM, JIS, GB, and ISO standards.

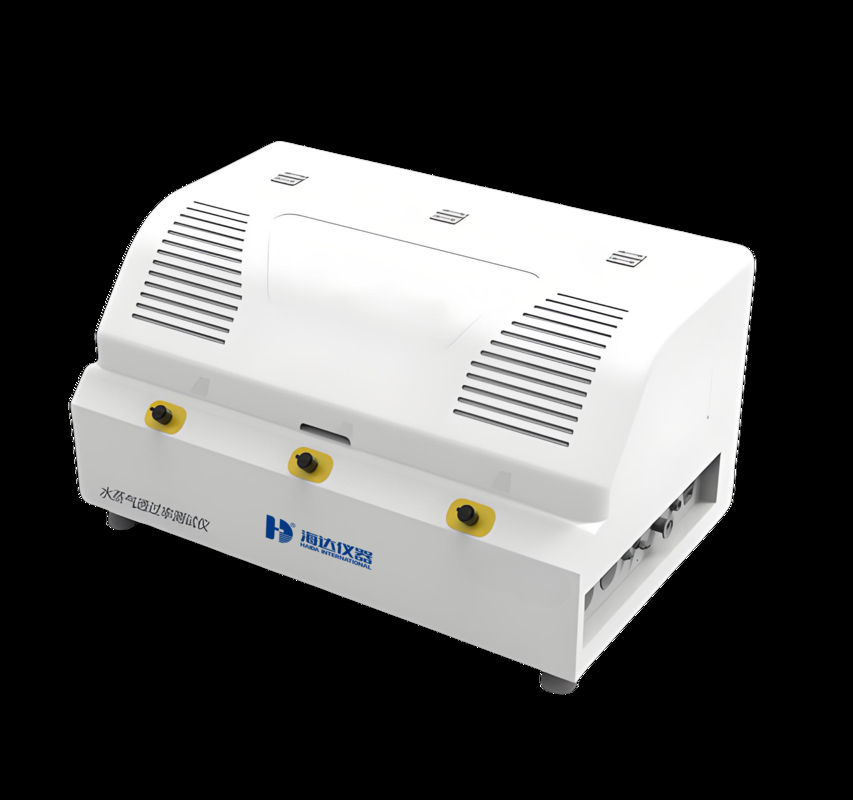

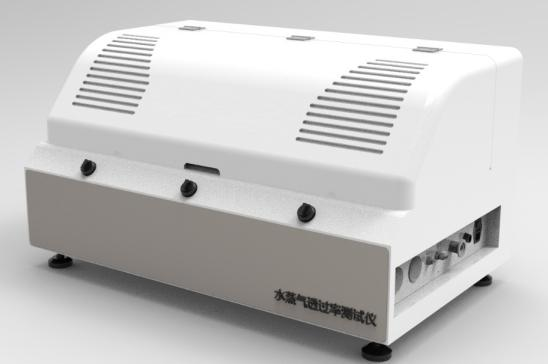

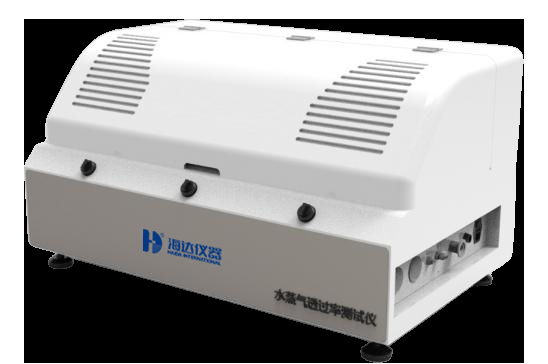

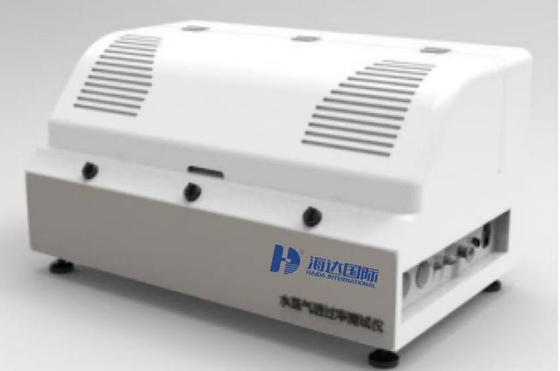

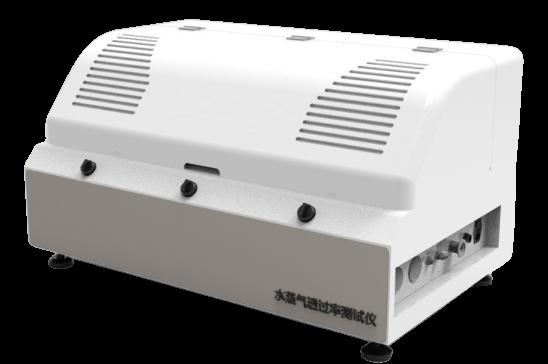

Infrared Water Vapor Permeability Tester for Packaging Materials 0
Infrared Water Vapor Permeability Tester for Packaging Materials 1
Infrared Water Vapor Permeability Tester for Packaging Materials 2
