5104-HD Automatic Condom Thickness Tester for Industrial Use

5104-HD Automatic Condom Thickness Tester for Industrial Use
5104-HD Automatic Condom Thickness Tester for Industrial Use 5104-HD Automatic Condom Thickness Tester for Industrial Use

تصویر بزرگ :  5104-HD Automatic Condom Thickness Tester for Industrial Use

جزئیات محصول:
Place of Origin: china
نام تجاری: HAIDA
گواهی: CE
Model Number: 5104-HD
پرداخت:
Minimum Order Quantity: 1set
قیمت: قابل مذاکره
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,T/T,D/P,Western Union,MoneyGram
Supply Ability: 30 Sets per Month

5104-HD Automatic Condom Thickness Tester for Industrial Use

شرح
Model: CAM-100 Beamsplitter: Coated KBr
Working Stability: 0.1% of total fluorescence intensity Time Repeatability: 0.01min
Analysis Time: 1-5 minutes Detector: High resolution DTGS detector
Pyrolysis Time Range: 0.01~99.99min Cooling Rate: < 3.5min (450˚C to 50˚C)
Software: CAM Analysis Software Ion Source: EI, EI/CI mixed source, CI (PCI & NCI)
Light Source: Element Lamp Wavelength Range: 190nm-900nm
Detection Object: Solid Instrument Resolution: 144±5eV
Wavenumber Range: 7800~375 cm-1
برجسته کردن:

5104-HD Automatic Condom,High Resolution Automatic Condom Thickness Tester,Automatic Condom Thickness Tester

,

High Resolution Automatic Condom Thickness Tester

,

Automatic Condom Thickness Tester

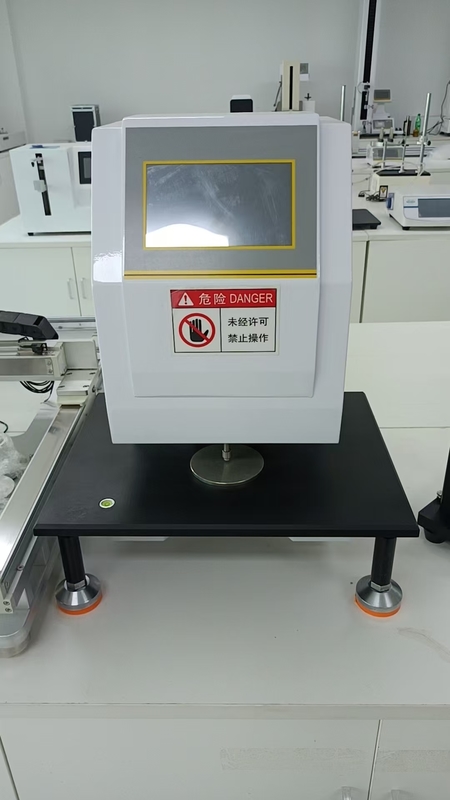

5104-HD AUTOMATIC CONDOM THICKNESS TESTER
PRODUCT DESCRIPTION
The automatic condom thickness tester adopts a mechanical measurement method and is suitable for precise thickness measurement of various materials within the specified range.
DESIGN STANDARD
GB 7544, ISO 4074
FEATURES
  • Measuring head automatically lifts and lowers during testing, eliminating human-induced system errors
  • Includes micro printer for quick printing of measurement results and calculation of size and average values
  • Supports multiple practical functions including real-time data display, automatic statistics, and printing
  • Designed according to standard contact area and measurement pressure, with support for non-standard customizations
  • Includes dedicated automatic sampler for fully automatic multi-point measurement with minimal human error
  • Equipped with standard RS232 interface for external system connections and computer data transmission
TECHNICAL PARAMETERS
Item Description
Test Range 0~5mm
Measuring Pressure 17.5±1kPa
Resolution 0.1 μm
Accuracy ±1μm
Contact area 50mm²
Speed 10 c/min
Power AC 220V 50Hz
Dimension (L*W*H) 450*340*390mm
Weight 30Kg
HAIDA INTRODUCTION
Watch Haida Introduction Video
Founded in 2004, Haida ® is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), Foam, Furniture & Optical (FFO), also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
