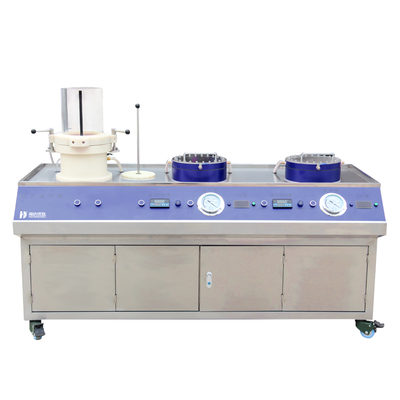

HD-P008 Sheet Former for Paper Compression and Burst Testing

HD-P008 Sheet Former for Paper Compression and Burst Testing
HD-P008 Sheet Former for Paper Compression and Burst Testing HD-P008 Sheet Former for Paper Compression and Burst Testing HD-P008 Sheet Former for Paper Compression and Burst Testing

تصویر بزرگ :  HD-P008 Sheet Former for Paper Compression and Burst Testing

جزئیات محصول:
Place of Origin: China
نام تجاری: Haida
گواهی: CE、ISO
Model Number: HD-P008
پرداخت:
Minimum Order Quantity: 1 set
قیمت: قابل مذاکره
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

HD-P008 Sheet Former for Paper Compression and Burst Testing

شرح
عمل: تست فشرده سازی ، تست مقاومت فشاری لوله کاغذ ، تست کننده پشت سر هم ، تست کششی ، ابزار تست کاغذ نام: تستر فشرده سازی لوله فنجان کاغذ ، تست کاغذ ابزار کاغذ GSM تستر/ تستر مقاومت پشت سر هم ، ابزار تست کا
نمایش: LCD ، نمایش دیجیتال نشان: آسان برای کار کردن
روش عملیاتی: خودکار نوع محصول: سازهای تست
دستگاه حفاظت: دستگاه محافظت از نوع القایی کنترل کردن: کنترل PLC
روش سنجش: فرستنده فشار توقف: تست توقف
وضوح نیرو: 1/500000 از حداکثر نیروی تست FS حالت ارتعاش: متقابل
تنظیم چرخه تست: 4 رقم پیشخوان پیش مجموعه
برجسته کردن:

Burst Testing Paper Sheet Former,Paper Compression Sheet Former,Paper Sheet Former

,

Paper Compression Sheet Former

,

Paper Sheet Former

EQUIPMENT DETAILS OF HD-P008 SHEET FORMER
HD-P008 Sheet Former for Paper Compression and Burst Testing 0
Product Attributes
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, Paper testing instrument
Display LCD, Digital display
Feature Easy to operate
Operation Method Automatic
Product Type Testing Instruments
Protection Device Induction type protection device
Control PLC control
Sensing Method Pressure Transmitter
Stop Stop test
Force Resolution 1/500000 of the maximum test force fs
Vibration Mode Reciprocating
Test Cycles Setting 4 digits pre-set counter
Application

This instrument complies with ISO5269/2 "Pulp - Preparation of Laboratory Paper for Physical Testing" Part II - Rapid Sheet Forming Method. It is used to prepare handsheets for testing physical properties and can also be used for wet sheeting of various fibers including glass fibers, carbon fibers, and nanomaterials. The machine integrates sheet copying, suction filtration, pressing, and drying functions, enabling the complete process from fiber to sample shaping on a single unit.

Standard Features
Inner diameter of round type pulp storage container ≥ 200mm
Water filtering copper mesh surface to water seal overflow edge 800+5mm
Water filtering copper mesh pressure hole (80 .100) optional (nano-fiber using the way of the tray network + filter paper)
Copper mesh clip material 304 stainless steel Copper mesh material: paper special phosphorus copper mesh
Volt weight 13kg hand-copied paper sheet pressure of 400kpa (volt roller press can increase the smoothness and uniformity of the paper)
Diameter of hand-copied paper sheet ∮200mm
Vacuum pump vacuum degree -0.092~-0.098MPa
Vacuum pressing force ≈0.1MPa
Drying station 1 (2 or more stations can be optioned)
Drying temperature ≤140℃ Digital arbitrary setting
Drying plate release mode Natural release (with self-absorbing function automatically absorbing after pressing together)
Drying time (quantitative 10-85g/m2) 3-6 minutes (varies for different fiber types with different moisture content of paper samples)
Heating power 2.5KW
Paper thickness range 10-200g/m2 0.05-3mm (varies for different fiber types)
Seal ring material Silicone
Water way Bottom water. The upper end of the water
Drainage method Pneumatic water release

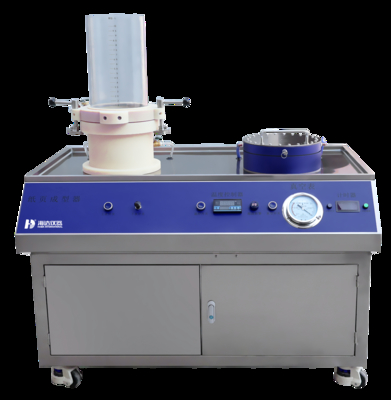

HD-P008 Sheet Former for Paper Compression and Burst Testing 1

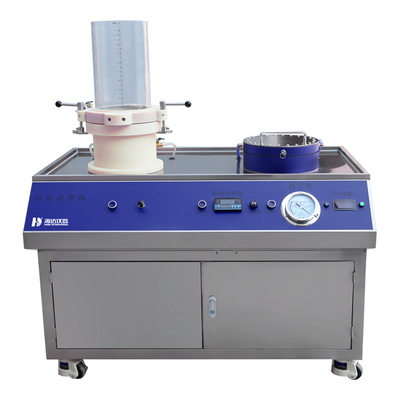

HD-P008 Sheet Former for Paper Compression and Burst Testing 2

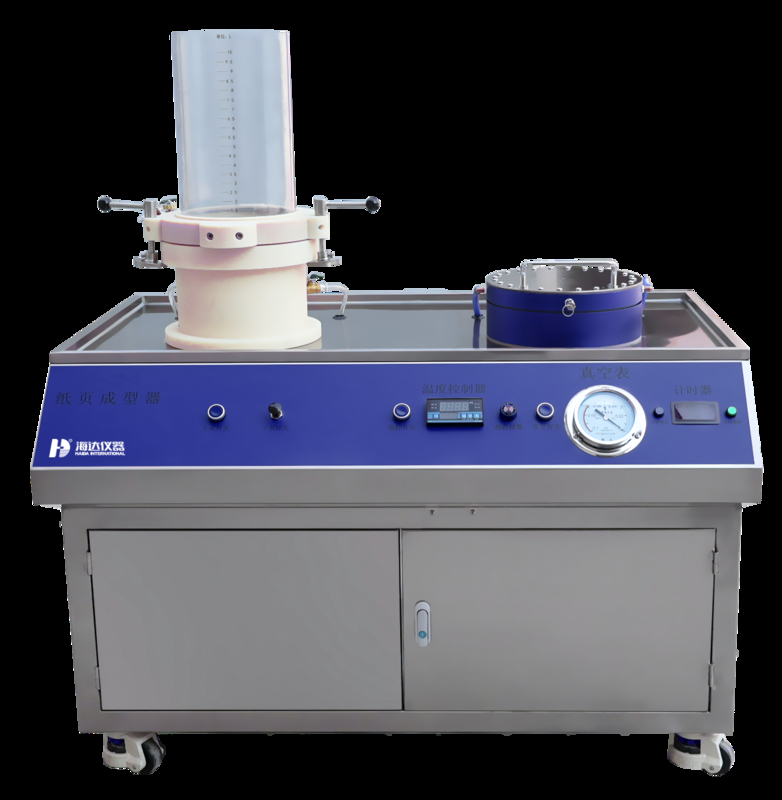

HD-P008 Sheet Former for Paper Compression and Burst Testing 3
