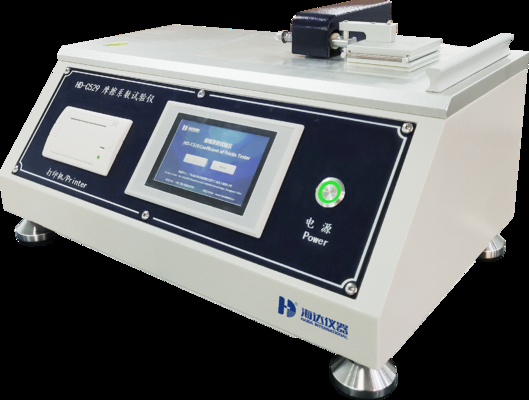

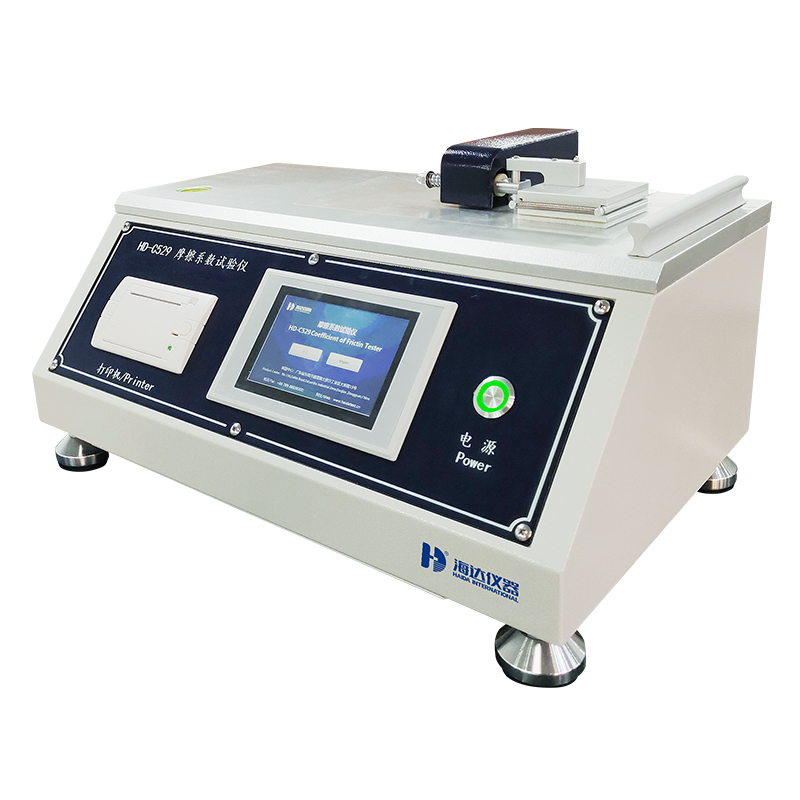

5027-HD Coefficient Friction Tester for Paper Packaging Testing

This tester complies with GB 10006-88 and ISO 8295-1986 standards for measuring dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness < 0.2mm) when sliding on themselves or other materials. Suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The measured friction coefficient indicates product smoothness.

• Stepper motor components for precise positioning and motion repeatability
• Dual guide rails and linear bearings for accurate positioning and smooth movement
• Paint-sprayed exterior for high rust resistance and aesthetic appeal

• Touch screen control for easy operation and improved efficiency
• Built-in direct thermal line printer for immediate test results
• Travel limit protection and fault alarm system for safe operation

The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force test module for uniform linear motion. Samples are secured under the handle, and the system calculates friction coefficients during motion, with results printed upon completion.
