جزئیات محصول:
|
نام: | تستر فشرده سازی لوله فنجان کاغذ ، تست کاغذ ابزار کاغذ GSM تستر/ تستر مقاومت پشت سر هم ، ابزار تست کا | نمایش: | LCD ، نمایش دیجیتال |
---|---|---|---|
نشان: | آسان برای کار کردن | روش عملیاتی: | خودکار |
نوع محصول: | سازهای تست | دستگاه حفاظت: | دستگاه محافظت از نوع القایی |
کنترل کردن: | کنترل PLC | قدرت: | الکترونیکی ، 220 ولت/50 هرتز ، AC220V ، زمینی ، منبع تغذیه باید قابل اعتماد باشد |
استفاده: | ابزار تست کاغذ ، دستگاه تست جهانی ، ابزار تست مقاومت کششی کاغذ/پلاستیکی ، دستگاه تست استحکام ، ابزار | نام محصول: | ابزار آزمایشگاه نفوذپذیری هوا ، تست قابلیت اطمینان از قطره بسته بسته / ابزار قطره ارتفاع صفر ، تست ک |
ضمانت: | 12 ماه ، 1 سال ، 2 سال ، 1-2 سال ، یک سال | وزن: | 70 کیلوگرم ، 91 کیلوگرم ، حدود 145 کیلوگرم ، 75 کیلوگرم ، 64 کیلوگرم |
منبع تغذیه: | 6A ، AC220V ، 220V 50Hz ، 50-60Hz ، 1 قطر | کاربرد: | و غیره ، تست کننده مقاومت فشاری لوله ، صفحه ، لاستیک ، نوار |
وضوح: | 1 / 20000،1 / 50000،0.1n ، 000،1mn | ظرفیت: | 200،500،1000kg ، 20،10t سفارشی سازی |
دقت: | 0.5 ± ، 1 ± 1 ٪ ، 0.5 ± | عمل: | تست فشرده سازی ، تست مقاومت فشاری لوله کاغذ ، تست کننده پشت سر هم ، تست کششی ، ابزار تست کاغذ |
سوئیچ واحدها: | KGF ، n. (اختیاری) ، LBF | سرعت تست: | 10 ~ 200 میلی متر در دقیقه |
بعد: | 360*264*400mm ، 70*34*60 cm ، 85*65*80cm | دامنه اندازه گیری: | 250-5600 kPa ، 10 ~ 1000mn |
حالت نمایش: | نمایشگر LCD ، حالت دیجیتال | معیارهای طراحی: | ISO 2248 ، ASTM-D2210 ، TAPPI T403 ، GB/T4857-92 ، JIS Z0202-87 |

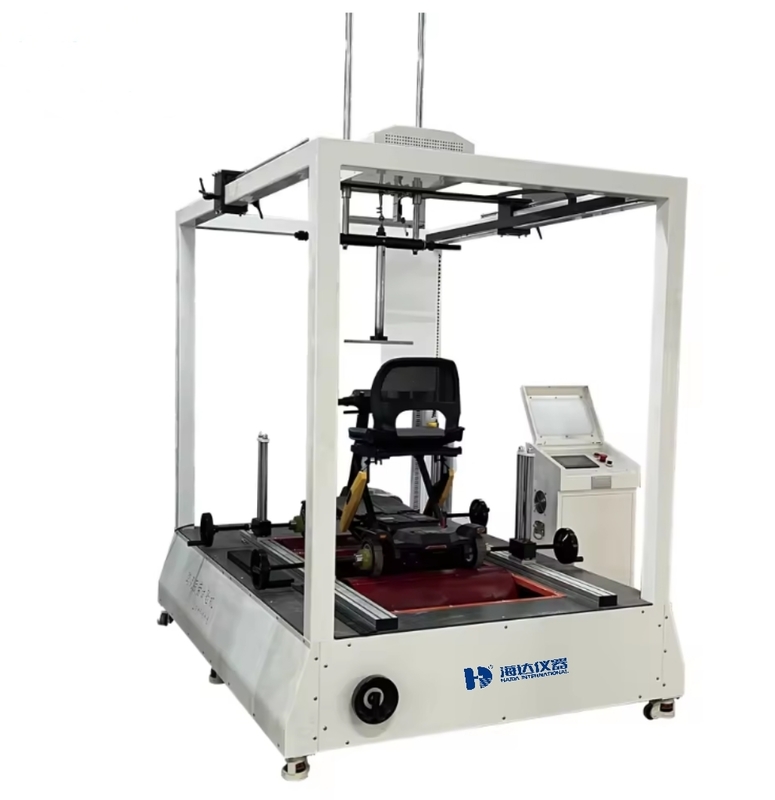

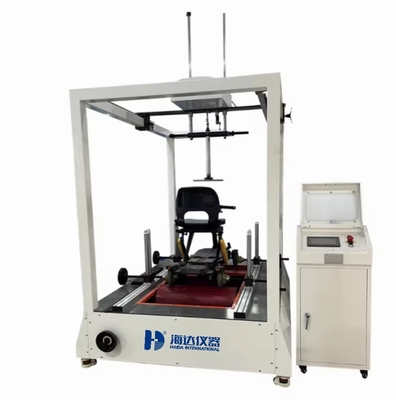

This machine performs road condition fatigue tests on wheelchairs, visually inspecting the extent of damage to the wheelchair. It is suitable for manual wheelchairs operated by the user or caregiver, as well as indoor and outdoor electric wheelchairs. Electric wheelchairs have three or more wheels mounted on two parallel drive axles, with no more than two driving wheels, and a speed not exceeding 5km/h. The machine is controlled by a PLC touch screen, allowing the setting of driving speed and distance. It can be set to distance mode or rotation mode, and will automatically shut off upon reaching the set distance.
ISO 7176-8-5.8;GB/T 1802
Maximum load capacity | ≥300kg |
Speed Range | 0-5KM/H Test speed: 1.0m/s (reference roller), 1.02—1.07m/s (driven roller) |
Test times | 0~999999 R can be set |
Obstacle height | 36±3 x 12±1 x 500mm(W×H×L), interchangeable |
Power supply | 380v, 50hz |
Roller quantity | 2-3 rollers customized |
Wheel diameter | ∮250±25mm. Width 900mm, surface knurling to increase the friction coefficient |
Wheel center distance adjustment range | 400~1000mm, adjusted by screw handwheel |
Dimensions | Approx.2200mmx1260mmx2700mm |
