5125-HD Burning Test Machine with Adjustable Armrests

گواهی
چین Hai Da Labtester گواهینامه ها
چین Hai Da Labtester گواهینامه ها
نظرات مشتریان
بله ما دستگاه را هفته گذشته دریافت کردیم. ما در حال حاضر بسیار مشغول هستیم و هنوز نمیتوانم آن را امتحان کنم، اما به نظر من مناسب است.

—— Peter Maas

از طرف شرکت برای بازدید از کارخانه ها و شرکت های شما، کارکنان فنی بسیار حرفه ای و صبور هستند، فکر می کنم من خوشحال خواهم شد که دوباره با شما همکاری کنم.

—— Steve Hubbard

چت IM آنلاین در حال حاضر

5125-HD Burning Test Machine with Adjustable Armrests

5125-HD Burning Test Machine with Adjustable Armrests
5125-HD Burning Test Machine with Adjustable Armrests 5125-HD Burning Test Machine with Adjustable Armrests

تصویر بزرگ :  5125-HD Burning Test Machine with Adjustable Armrests

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE、ISO
شماره مدل: 5125-HD
پرداخت:
مقدار حداقل تعداد سفارش: 1 ست
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه ای که با فیبر رزین و فیلم PP محافظت می شود ، سپس با Operation Man در کیس چوبی قوی قرار می
زمان تحویل: 20 روز پس از تأیید سفارش
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram
قابلیت ارائه: 300 مجموعه در ماه

5125-HD Burning Test Machine with Adjustable Armrests

شرح
مادی: فولاد ویژگی های اختیاری: ظرفیت و ابعاد بار قابل تنظیم
کلمه کلیدی: دستگاه تست مبلمان قدرت: الکترونیکی
روش آزمایش: آزمایش بار پویا و استاتیک منبع تغذیه: AC/DC
استفاده کردن: صندلی نوع: تجهیزات تست
سوئیچ واحد: gf، kgf، N، LBf، W، KN، T حالت رانندگی: موتور فرکانس متغیر و تسمه تایم
منبع تغذیه: برق نمایشگر LCD: بله
دسته های قابل تنظیم: بله
برجسته کردن:

5125-HD Burning Test Machine,Burning Test Machine with Adjustable Armrests

,

Burning Test Machine with Adjustable Armrests

5125-HD Burning Test Machine

 5125-HD Burning Test Machine with Adjustable Armrests 0

EQUIPMENT DETAILS













APPLICATIONS & TEST PURPOSE:

This device is suitable for determining the non-flammability performance of samples under direct burning by specified fire sources.

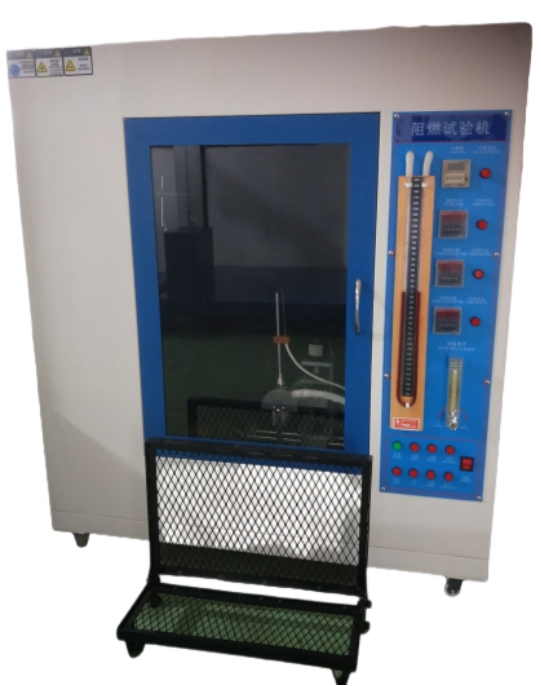

The device consists of a control panel, air box, combustion nozzle, solenoid valve, high-voltage igniter, sample holder, gas pipe, gas source, flow meter, U-shaped manometer, and signal control lines (as shown in Figure 1). The entire combustion test process of this machine is fully automated, such as electronic ignition, flameout time, combustion time, and number of combustions can all be automatically completed.



STANDARD: ISO 7176-10.8;GB/T 18029.10-2009





STANDARD FEATURES

Item

Specification

Nozzle inner diameter

6.5mm

Length

200+10mm

Test inclination angle

20,45,90 degrees with manual switching

Flame height

adjustable from 20mm to 175mm

Flame application time

adjustable from 0-999.9s+0.1s

Afterflame time

0-999.9s+0.1s,automatically recorded, manually paused

Afterbum time

0-999.9s+0.1s,automatically recorded, manually paused

Combustion gas

98% methane gas or 989 propane gas (usually liquefied petroleum gas can be used as a substitute)

Flow and pressure

flow meter and U-shaped pressure gauge

Test background

black background

Test process

manual control of the test program, independent ventilation

Chamber volume: 0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable)

Chamber volume

0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable)

Cabinet material

mirror stainless steel

Equipment dimensions

1000mm x 650mm x 1300mm(L*W*H)



5125-HD Burning Test Machine with Adjustable Armrests 1
