HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS


HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

تصویر بزرگ :  HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

جزئیات محصول:
محل منبع: گوانگدونگ ، چین (سرزمین اصلی)
نام تجاری: HAIDA
گواهی: ISO 9001:2000; ISO 9001:2008
شماره مدل: 5100 HD
پرداخت:
مقدار حداقل تعداد سفارش: 1 ست
قیمت: قابل مذاکره
جزئیات بسته بندی: مجموعه ach با فیبر رزین و فیلم PP محافظت می شود، سپس در جعبه چوبی قوی با عملیات مرد قرار می گیرد
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram ، به صورت نقدی ، سپرده
قابلیت ارائه: 30 مجموعه در هر ماه HAIDA

HD-F801-1 VOC Test Chamber EQUIPMENT DETAILS

شرح
اندازه نمونه: 80 میلی متر × 300 میلی متر محدوده چرخش: 0-360 درجه
ارتفاع بازو: 650-780 میلی متر وزن: 150 کیلوگرم
محدوده زمان بندی: 0-999S نیروی بسته شدن: 50+/-5N
وزن بارگیری: 100 پوند یا 225 پوند حسگر قدرت: سنسورهای برند با دقت بالا 7 مجموعه
نرخ: 8 تا 12 بار در دقیقه وضوح: 0.1 کیلوگرم، 0.98 نیوتن، 0.22 لیتر
حداکثر ظرفیت بار: 1000 کیلوگرم تعداد چرخه: 500000 1 ~
دقت تست استاتیک: 1 /0 ٪ محدوده اندازه گیری جریان: 10 تا 100 متر در دقیقه
ارتفاع تست: 300-600 میلی متر

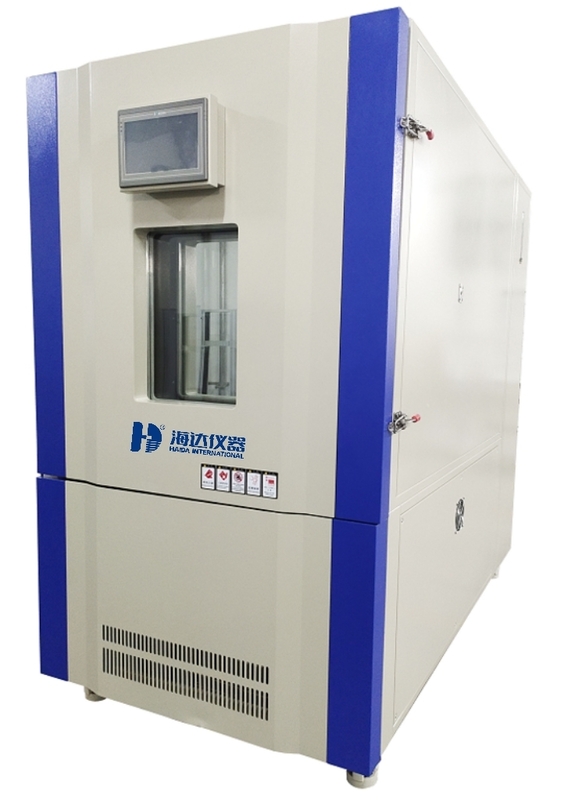

HD-F801-1 VOC Test Chamber
EQUIPMENT DETAILS

It is used to test VOC (volatile organic compound) emission of various wood-based panel, composite wood flooring, carpet, carpet padding, and other interior decoration materials, also other building materials under constant temperature humidity.

Working Principle

Put sample into 1000L square test chamber, under specify temperature, humidity, air velocity. The VOC and formaldehyde will released from samples and mixed with the air in the chamber, the air will be drawn through the absorption bottle is filled with distilled water, all the formaldehyde in air dissolve in the water; Measure the amount of formaldehyde in the absorption solution and extraction of air volume, and show it by micrograms per cubic meter (mg/m³).

Design Standard

ISO 16000-9 <Part9: Determination of the emission of volatile organic compounds from building products and compounds from building products and furnishing—Emission test chamber method>

EN 16516 <Construction products: Assessments of release of dangerous substances – Determination of emissions into indoor air>

Main technical parameters
Item Specification
Inner dimension(W*D*H) (1±0.02)m3
External dimension(W*D*H) 1230*2150*2020mm(W*D*H)
Test temperature range (15- 40)℃ (deviation: ±0.5℃, Resolution 0.1℃) Adjustable
Humidity range (30- 80)% R.H. (accuracy:±3%, Resolution 0.1%) Adjustable
Background levels

Formaldehyde≤0.006mg/m³

TVOC≤0.02 mg/m³

Single VOC≤0.002 mg/m³

Air Velocity 0.1- 2m/s, Adjustable
Air replacement rate 0.5/h
Loading factor 0.4~1.8(m2/m3)
Flowmeter Electronic air flow meter
Leakproofness 1KPa relative pressure, leakage rate<10-3*1m³/min, import and export air differ<1%
Cooling system Aspero refrigerating compressor
Air supply system Oil-free air compressor, cold dryer
Adiabaticity The inner walls and doors of chamber shall have effective thermal insulation.
Material
  • Chamber using Jacket structure design
  • Two layers of stainless steel inner compartment
  • The middle air layer
  • The inner compartment with mirror stainless steel
  • Don’t produce and absorb formaldehyde and VOC
Air collector

Collector speed: 0.25L/min ~ 2.5L/min, accuracy:±5%

Collector time: 99 hours adjustable

Equipped with sampling tube, absorption bottle, gas sampler

Power Three-phase, AC380V,50Hz
Standard Test Chamber, sampling tube, absorption bottle
Test Standard:EN 16516
