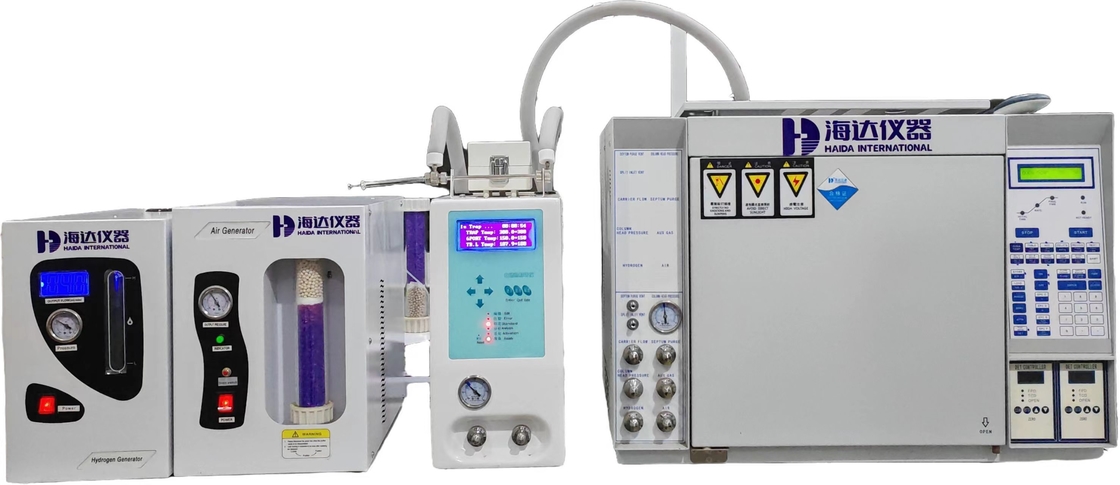

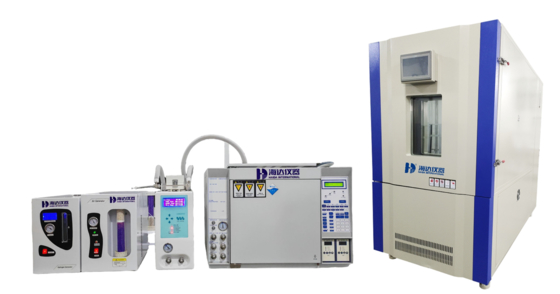

HD-F801-2 Gas Chromatography

Furnace size

28x 30 x18cm

Temperature range

Temperature setting

1℃

programmed heating rate

0.1℃

Maximum heating speed

120℃/ min

Temperature stability

0.01℃when the ambient temperature changes by 1℃

Programmed temperature rise

7-step programmed temperature rise

Loss compensation of operable column

dual channel

Power supply

220V±10%,2500W (maximum)

Volume

57x 55 x48 cm

Weight

around 50kg

Hydrogen flame ionization detector (FID)

Maximum operating temperature

400℃

Detection limit

≤5 x 10-12g / S

Drift

≤5 x 10-13a / 30min

Noise

2 x 10-13a

Dynamic linear range

≥107

Thermal conductivity cell detector(TCD)

Maximum operating temperature

400℃

Sensitivity

≥10000 mv.ml/mg[n-C16]

Drift

≤100uv / 30mi

Noise

≤20ua

Dynamic linear range

≥104

Electronic capture detector (ECD)

Maximum operating temperature

350℃

Detection limit

≤6×10-15 g / ml (γ - 666)

Drift

≤50uv / 30min

Noise

≤20uv

Dynamic linear range

≥104

Temperature control range of sample area

5℃-400℃; Heat power:200W

Temperature control range of valve injection system

5℃-180℃; Heat power:60W

Sample transfer line temperature control range

5℃-200℃; Heat power:40W

Temperature Control Accuracy

< ±0.1℃

Temperature control gradient

< ±0.1℃

Desorption recovery

> 95%

Analog sampling flow

100ml/min

Blowback cleaning flow

0~200ml/min

Machine Size and Weight( L x W x H)

400x170x300mm,Around 12kg
