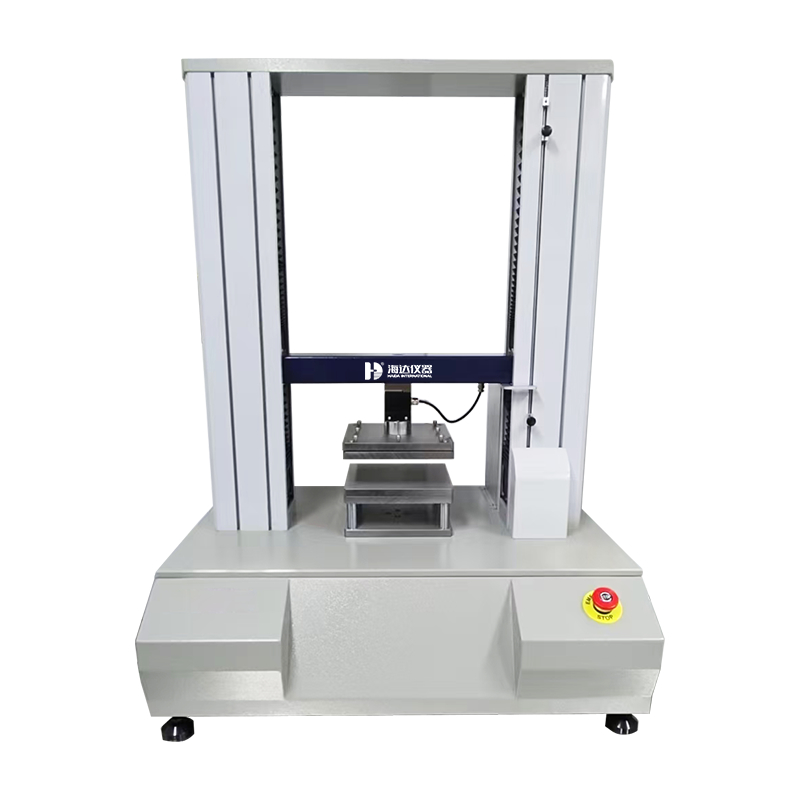

EQUIPMENT DETAILS OF 5077-HD BOTTLE COMPRESSION TEST MACHINE
PRODUCT DESCRIPTION
This instrument is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.
It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.
TEST STANDARD
ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1240 x 840x1320m
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 180kg
MAIN FEATURES
- Double-column ball screw drive to ensure the high-precision and stable operation of the instrument;
- The force value test system provides force value accuracy better than 1.0 level, and the test data is accurate;
- The system is embedded with a USB interface or network port, which is convenient for data transmission and external access of the system.
- Test speed can be adjusted in the software to adapt different test requirements from customers.
TECHNICAL PARAMETERS
| Item | Description |
| Capacity | 500kg, imported load cell |
| Load resolution | 1/250,000 |
| Load Precision | Within ± 0.5% |
| Motor | 400W Panasonic servo motor |
| Operation Mode | Controlled by PC with software, Windows 10 operation |
| Test Speed | 0.1-500mm/min adjustable |
| Max. Stroke | 600mm (excluding fixture) |
| Test unit | gf/kgf/N/kN/lbf/T |
| Dimensions | (L*W*H)790 x 610 x 1100mm |
| Weight | Approx. 170 kg |
| Power | 1∮, 220V, 500W |
