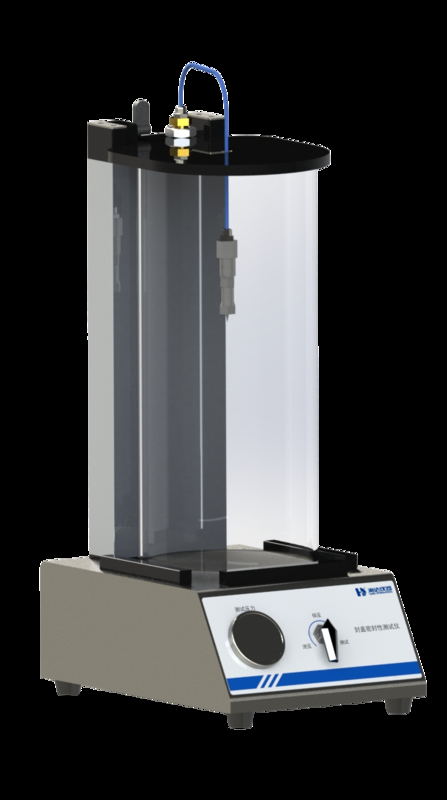

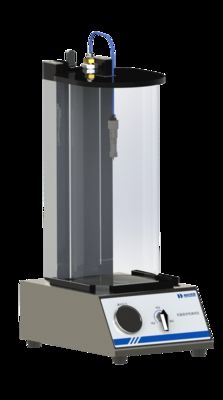

EQUIPMENT DETAILS OF 5082-HD SECURE SEAL TESTER

Pressurization

Compressed air or carbon dioxide is used for inflation and pressurization

Positive pressure measurement

Avoids the deficiency of negative pressure measurement that the pressure is less than 1 bar

Test pressure range

0-16bar (1.6Mpa)

Material

Made of oxidized aluminum, stainless steel and plastic materials, strong and durable

The instrument is equipped with a pressure reducing valve inside to easily set the maximum test pressure;

Precise flow control, adjustable pressure increase speed, adjustment range: the time to increase the pressure to 1Mpa can be arbitrarily adjusted in the range of 5-60 seconds

Many safety features

Pressure reducing valve, safety valve, barrel cover safety latch, pressure-opening valve (measurement cannot be started without the test bucket), and exhaust holes on the instrument cover for rapid gas discharge (measurement cannot be started without the barrel cover, and pressure is released immediately after the barrel cover is opened)

Pressure gauge division

0.05Mpa

Pressure gauge display range

0-1.6Mpa

Maximum size of the measured sample

330 * 150mm (height* diameter)

Dimensions

length 320 * width 380* height 720 mm

Net weight

15 kg
