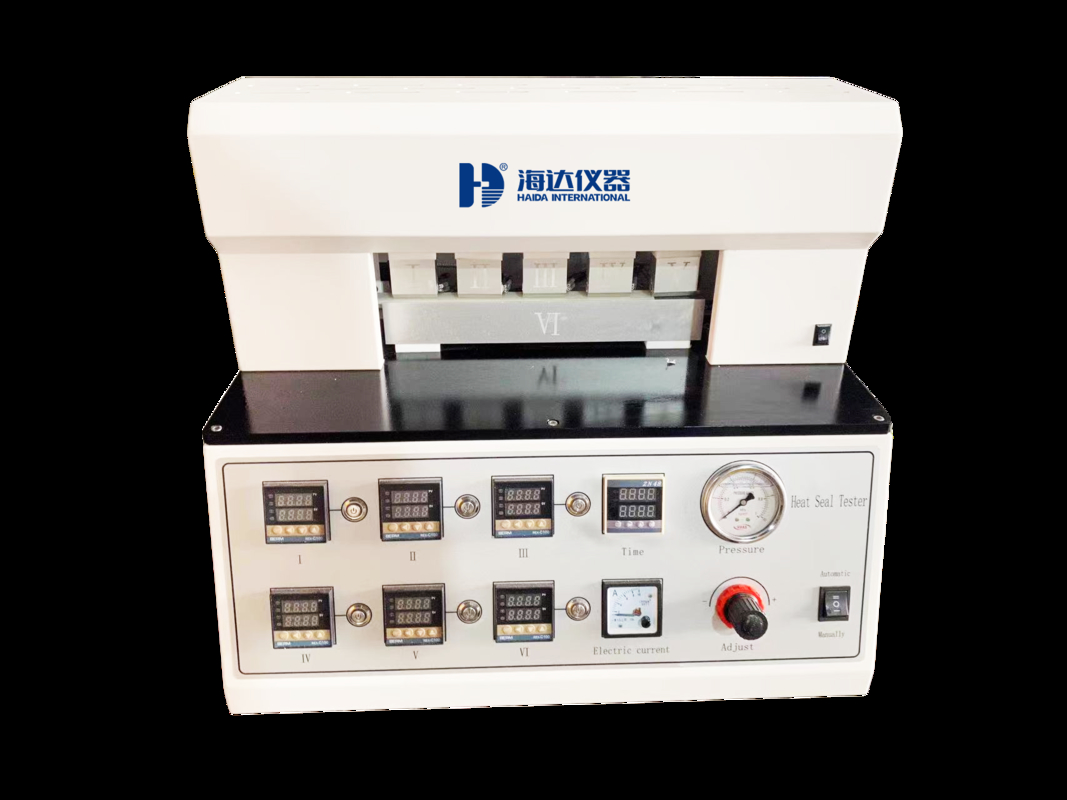

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER
EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

تصویر بزرگ :  EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE,,ISO
شماره مدل: 5088 HD
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه ای که با فیبر رزین و فیلم PP محافظت می شود ، سپس با Operation Man در کیس چوبی قوی قرار می
زمان تحویل: 20 روز پس از تأیید سفارش
شرایط پرداخت: L/C ، T/T ، D/A ، D/P ، Western Union ، MoneyGram
قابلیت ارائه: 300 مجموعه در ماه

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

شرح
دامنه گشتاور: 0-200MV کنترل دما: در دمای 1 ± 1 ℃ یا 100 ± 1 ℃ تا دمای اتاق
بعد: 550x440x690 میلی متر قدرت: AC 220V
عرضه هوا: 0.6 مگاپیکال طول چرخ غلتکی: 460 میلی متر
حالت آزمون a: دمای اتاق دامنه آزمون: دامنه کامل: 0.55-500 میلی متر
ایستگاه تست: 3 خطای نمایش دما: 1℃
زمان تزریق: 0-9999s [قابل تنظیم] سرعت صوت مواد: 1000-9999 متر بر ثانیه
قدرت گرمایشی: 4 کیلو وات Dispaly: دیجیتالی
مشخصات: 20-88HRA، 20-100HRB، 20-70HRC

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 0

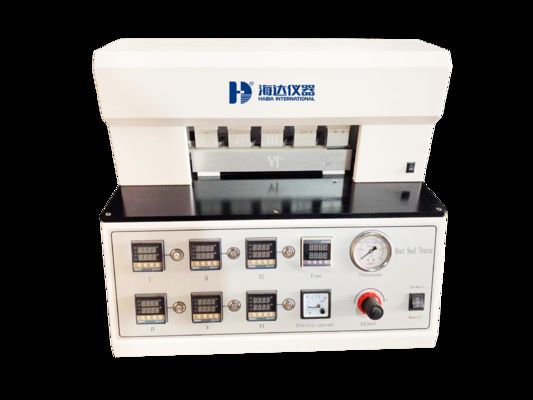

***Picture for reference***



PRODUCT DECRIPTION

Heat sealing tester adopt hot-pressing sealing method which is used to determination of plastic film base material, flexible packaging composite film, coated paper and other heat sealing compound film of heat sealing temperature, heat sealing time, heat sealing pressure parameters , to provide users with accurate heat sealing test index. Fully digital control system, the key parts adopt international famous brand products, a high degree of automation, easy operation.

TEST STANDARD

ASTM F2029, QB/T 2358, YBB 00122003





TECHNICAL PARAMETERS

Item

Description

Heat sealing temperature

RT+10~250

accuracy

±1

Heating sealing pressure

0~0.7Mpa(Adjustable)

Heating sealing time

0.01~99.99s(Adjustable)

Heating sealing surface(L*W)

40mmx10mm * 5 stations

Heating method

Single heating or double heating;

upper and lower sealing knives can be individually switched and individually temperature controlled

Test mode

Manual mode / automatic mode

(Manual mode is controlled by foot switch, automatic mode is controlled by adjustable delay relay);

Air pressure

0.7MPa (user-supplied)

Machine Dimension(L*W*H)

550*330*460mm

Net weight

Around 35kg

Power

1-PH, AC 220V,50Hz

Standard configuration

Foot switch + Air supply line + Air filter + Power cord

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 1ABOUT US

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 2 EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 3 EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 4
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
