Advanced and Versatile Charge / Discharge Battery Testing System for Your Specific Requirements

گواهی
چین Hai Da Labtester گواهینامه ها
چین Hai Da Labtester گواهینامه ها
نظرات مشتریان
بله ما دستگاه را هفته گذشته دریافت کردیم. ما در حال حاضر بسیار مشغول هستیم و هنوز نمیتوانم آن را امتحان کنم، اما به نظر من مناسب است.

—— Peter Maas

از طرف شرکت برای بازدید از کارخانه ها و شرکت های شما، کارکنان فنی بسیار حرفه ای و صبور هستند، فکر می کنم من خوشحال خواهم شد که دوباره با شما همکاری کنم.

—— Steve Hubbard

چت IM آنلاین در حال حاضر

Advanced and Versatile Charge / Discharge Battery Testing System for Your Specific Requirements

Advanced and Versatile Charge / Discharge Battery Testing System for Your Specific Requirements
Advanced and Versatile Charge / Discharge Battery Testing System for Your Specific Requirements

تصویر بزرگ :  Advanced and Versatile Charge / Discharge Battery Testing System for Your Specific Requirements

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE,,ISO
شماره مدل: 9004-HD
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه ای که با فیبر رزین و فیلم PP محافظت می شود ، سپس با Operation Man در کیس چوبی قوی قرار می
زمان تحویل: 20 روز پس از تأیید سفارش
شرایط پرداخت: L/C ، T/T ، D/A ، D/P ، Western Union ، MoneyGram
قابلیت ارائه: 300 مجموعه در ماه

Advanced and Versatile Charge / Discharge Battery Testing System for Your Specific Requirements

شرح
کاربرد: تست باتری روش سیم کشی: سه فاز چهار فاز AC
نمایش: ال سی دی دامنه فعلی: 0-10A
وضوح: 0.001V/0.001A روش سیم کشی: AC 220V
دقت: 1 /0 ٪ منبع تغذیه: گی
برجسته کردن:

Versatile Charge Discharge Battery Testing System,10A Charge Discharge Battery Testing System

,

10A Charge Discharge Battery Testing System

Detailed Information

  • Place of Origin: China

  • Brand Name: Kingpo

  • Certification: ISO9001, CE

  • Model Number: KP-GT065

  • Compliant Standard: IEC60065 Clause 12.1.1

  • Impact Rate: 7 times per minute

  • Drop Height: 50 mm

  • Maximum Test Count: 9999 times

  • Overall Dimensions: 2800 × 800 × 1000 mm

  • Test Table Size: 2500 × 500 mm

  • Maximum Load: 100 kg

  • Key Applications: AV test equipment, TV signal tester

Product Description

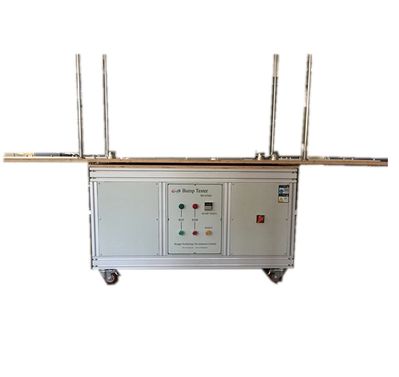

The KP-GT065 Bump Test Machine is designed in accordance with IEC60065 Clause 12.1.1 to evaluate the mechanical durability of audio, video, and similar electronic apparatus with a mass exceeding 7 kg.Advanced and Versatile Charge / Discharge Battery Testing System for Your Specific Requirements 0

The test involves placing the equipment on a wooden horizontal support and allowing it to undergo 50 free falls from a height of 5 cm onto a wooden surface. After completion, the apparatus must show no damage as defined by the standard.

Technical Parameters

  • Power Supply: 380 V, 50 Hz

  • Impact Frequency: 7 times/minute

  • Drop Height: 50 mm

  • Test Count Range: 1–9999 times (user-settable)

Operating Procedure

  1. Set the desired number of drops using the digital counter.

  2. Position the sample correctly on the test platform.

  3. Press the “RUN” button to initiate testing.

  4. The machine stops automatically when the set value is reached. Remove the sample and evaluate the results.

Note
The side guard panels may be omitted when testing smaller samples.

  •
  • Advanced and Versatile Charge / Discharge Battery Testing System for Your Specific Requirements 1
