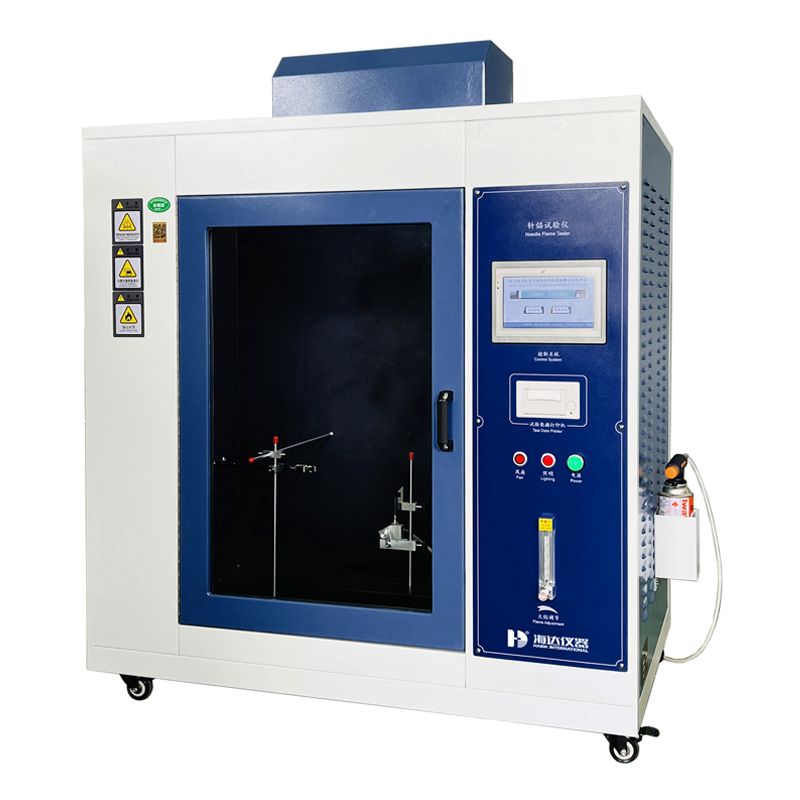

Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment
Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

تصویر بزرگ :  Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE,,ISO
شماره مدل: 6012-HD
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه با فیبر رزین و فیلم PP محافظت می شود، سپس در جعبه چوبی قوی با عملیات مرد قرار می گیرد
زمان تحویل: 20 روز پس از تایید سفارش
شرایط پرداخت: L/C، T/T، D/A، D/P، Western Union، MoneyGram
قابلیت ارائه: 300 ست در ماه

Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

شرح
حجم اتاق: 0.5 متر مربع ، با درب مشاهده شیشه روشنایی داخلی: <20 لوکس
سوخت: گاز بوتان (خلوص 95 ≥) ؛ بدون ورود هوا به لوله مشعل ارتفاع شعله: قابل تنظیم: 1 میلی متر 12 میلی متر (شامل اندازه گیری سنج)
مکانیزم محرک: موتوری تایمر: دامنه قابل تنظیم: 0-999.9 ثانیه ؛ ضبط احتراق/مدت زمان قابل تنظیم
نمایشگر دما: دامنه: 0-1000 درجه سانتیگراد ؛ وضوح: 1 درجه سانتیگراد منبع برق: AC 220V ، 50Hz ، 1KVA
برجسته کردن:

Touch Screen Needle Flame Testing Machine,Needle Flame Testing Machine,Motorized Drive Needle Flame Testing Machine

,

Needle Flame Testing Machine

,

Motorized Drive Needle Flame Testing Machine

Needle Flame Test Instrument

Product Description


This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards. It is applied when glow-wire or horizontal-vertical flame tests are unsuitable for small components. If a sample ignites during glow-wire testing, the needle flame test further evaluates combustion risks. Suitable for parts of electrical/electronic products and household appliances (e.g., terminal blocks, centrifugal switches, rice cooker sockets).

Test Standard


IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC 60335-1, GB 4706.1, UL 60065

Product Specifications
Model 6012-HD
Chamber Volume ≥0.5 m³, with glass observation door
Internal Illuminance <20 Lux
Fuel Butane gas (≥95% purity); no air ingress into burner tube (user-provided)
Burner Specifications Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm.
Flame Height Adjustable: 12mm±1mm (includes measuring gauge).
Flame Temperature 100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included.
Temperature Display Range: 0-1000°C; Resolution: 1°C
Timer Adjustable: 0-99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording.
Drive Mechanism Motorized
Key Features Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation.
Power Supply AC 220V, 50Hz
Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment 0
