HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method

HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method
HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method

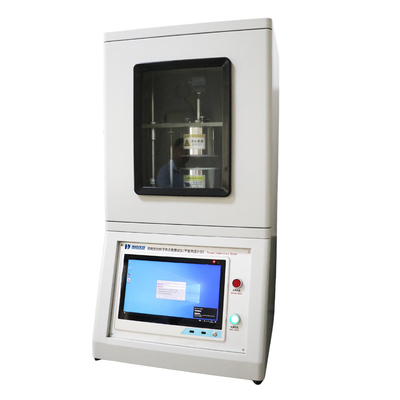

تصویر بزرگ :  HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method

جزئیات محصول:
محل منبع: چین
نام تجاری: Haida
گواهی: CE,,ISO
شماره مدل: 60086-HD
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: هر مجموعه با فیبر رزین و فیلم PP محافظت می شود، سپس در جعبه چوبی قوی با عملیات مرد قرار می گیرد
زمان تحویل: 20 روز پس از تایید سفارش
شرایط پرداخت: L/C، T/T، D/A، D/P، Western Union، MoneyGram
قابلیت ارائه: 300 ست در ماه

HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method

شرح
استفاده: کنترل و آزمایش کیفیت حالت تولید ازن: ژنراتور ازن یا روش جذب UV
حالت آزمون a: دمای اتاق Dispaly: دیجیتال
سرعت تست: قابل تنظیم محصول: تجهیزات تست لاستیک
سرعت پیچ: 0 ~ 150 دور در دقیقه محدوده فرکانس: 0 5-600 هرتز
ابعاد خارج: 280 × 290 × 450 میلی متر روش کنترل: تست خودکار کامپیوتر
بزرگنمایی نوری: 100 بار دمای ثابت: 50 ℃ 0.5 ℃ ℃ و 100 ℃ ± 0.5 ℃ ℃
محدوده دما: دمای معمولی ~ 200 ℃ قدرت گرمایش الکتریکی: AC220V ± 10 ٪ 50HZAC220V ± 10 ٪ 50Hz
استانداردهای تست: ASTM ، ISO ، GB ، JIS و غیره استوانه: قطر 9.5504 ± 0.0076 میلی متر
قطر پروب a: 7.5 میلی متر ظرفیت تزریق: 40*65 سانتی متر مربع
منبع هوا: 0.6 مگاپاسکال مشخصات: 20-88HRA، 20-100HRB، 20-70HRC
برجسته کردن:

Thermofluidometer Method Thermal Conductivity Tester,Constant Temperature Thermal Conductivity Tester

,

Constant Temperature Thermal Conductivity Tester

HD-60086

Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)

Thermal Conductivity Tester adopts the internationally popular method of heat flow meter to detect thermal conductivity and thermal resistance, with computer to realize fully automatic detection and generation of experimental report. The instrument adopts to add stable hot surface temperature on one side of the specimen, the heat is transferred to the cold surface through the specimen, and the transferred heat flow is measured to calculate the thermal conductivity and thermal resistance. Adopting imported sensors and computer technology, it is characterized by good measurement accuracy, high reliability and good repeatability. Especially suitable for low thermal conductivity measurement (accurate to 0.1mw). It can be used for testing plastics, rubber, thermal insulation materials, aerogel panels, vacuum glass, etc. It is widely used in colleges and universities, scientific research institutes, quality inspection, factories and mines.

HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method 0

Technical Paramet

Item
Parameters
Thermal conductivity range
0.0001 ~ 1W / m-k, can be measured accurately to 0.1mw / m-k
0.001 ~ 300W / m-k. computer automatically switch range
Measuring accuracy
1%
Specimen size
50*50 ~ 150*150, 150*150 ~ 300*300(mm) optional (standard configuration), the thickness is not greater than 50mm.
Sample state
Can test solid material, powder material
Measuring time
15~20 min
Hot surface temperature range
RT~ 99.9 ºC (standard configuration), RT ~ 299.9 ºC, RT ~ 499.9 ºC optional
Hot surface temperature control
Plate heater, bi-directional SCR control, temperature control accuracy 0.1ºC
Cold surface temperature range
0 ~ 99.9 ºC (standard configuration), -10 ~ 99.9 ºC, according to user requirements to determine the lower temperature
Cold surface temperature control
Water-cooled to ensure the stability of the cold surface temperature (precision thermostatic water tank, temperature adjustable),
temperature control accuracy of 0.1 ºC
Specimen clamping pressure range
0 ~ 1000N, resolution 0.1N
Sample thickness range
Measure automatically, 0 ~ 50mm, resolution 1um
Heat flow meter
Imported original heat flow meter
Data storage
Computerized automatic testing and storage printing and storage of experimental data
Machine dimension
(L*W*H)550*450*1500mm
Machine weight
Approx. 100KG
Water bath dimension
(L*W*H)300*350*530mm
Water bath weight
Approx. 35KG
Power
1∮ AC 220V 1KW
Standards
GB/T10295-2008, ASTM E1530, ASTM C518-04, ISO 8301, DIN EN 12664

About us


Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method 9HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method 10HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method 11


HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method 12

HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method 13

HD-60086  Thermal Conductivity Tester Flat Plate Thermofluidometer Method 14

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined





FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.





Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.





Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
