جزئیات محصول:
|
حالت تولید ازن: | ژنراتور ازن یا روش جذب UV | حالت آزمون a: | دمای اتاق |
---|---|---|---|
Dispaly: | دیجیتال | سرعت تست: | قابل تنظیم |
محصول: | تجهیزات تست لاستیک | روش کنترل: | تست خودکار کامپیوتر |
بزرگنمایی نوری: | 100 بار | محدوده دما: | دمای معمولی ~ 200 ℃ |
قدرت گرمایش الکتریکی: | AC220V ± 10 ٪ 50HZAC220V ± 10 ٪ 50Hz | استانداردهای تست: | ASTM ، ISO ، GB ، JIS و غیره |
استوانه: | قطر 9.5504 ± 0.0076 میلی متر | قطر پروب a: | 7.5 میلی متر |
ظرفیت تزریق: | 40*65 سانتی متر مربع | منبع هوا: | 0.6 مگاپاسکال |
مشخصات: | 20-88HRA، 20-100HRB، 20-70HRC | ||
برجسته کردن: | Rubber Plastic Test Equipment,Rubber Plastic Test Machine,Board materials Rubber Plastic Test Equipment,Rubber Plastic Test Machine,Board materials Rubber Plastic Test Equipment |

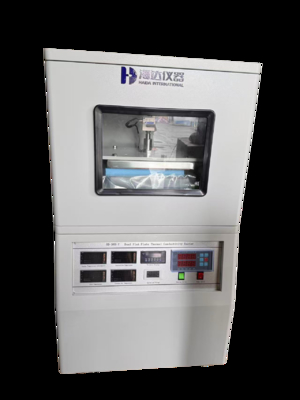

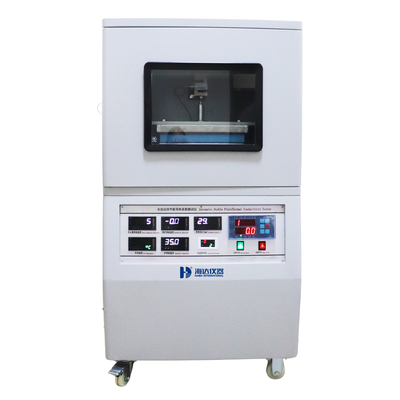

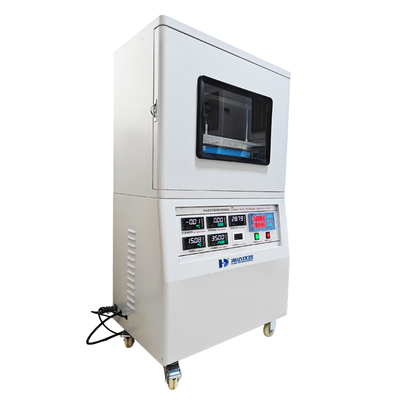

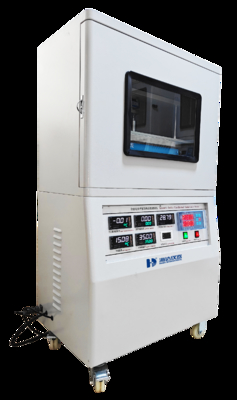

The thermal conductivity tester is mainly used to test plastic, rubber, glass, fiber, benzene board, extruded plastic board, foamed concrete, hollow glass, wood board, all kinds of heat preservation materials and other h omogeneous board materials, and at the same time, it can measure the thermal conductivity of various substances such as granular materials, bulk materials, soft materials.
Technical Paramet
Item
|
Parameters
|
Thermal conductivity range
|
0.001~3.000 W/m.K
|
Measuring accuracy
|
≥±2%
|
Repeatability error
|
≤±1%
|
Sample state
|
Can test solid material, powder material
|
Measuring time
|
60 minutes
|
Hot surface temperature range
|
RT~150ºC, resolution: 0.01ºC
|
Cold surface temperature range
|
0~60 ºC, resolution: 0.01 ºC
|
Pressure measurement range
|
0~500N, resolution: 0.1 N
|
Sample thickness range
|
0~50mm, resolution 0.001mm, automatic digital thickness measurement
|
Specimen size
|
(Length*Width*Thickness)300*300*(5-50)mm (standard configuration)
|
Control method
|
By computer and software
|
Machine dimension
|
(L*W*H)550*450*1500mm
|
Machine weight
|
Approx. 100KG
|
Bath dimension
|
(L*W*H)300*350*530mm
|
Bath weight
|
Approx. 35KG
|
Power
|
1∮ AC 220V 50W
|
About us
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ
Q: How about your warranty?
Q: What is the order process?
Q: Can we visit your factory before order?
Q: Do you accept customization service?
