Hydraulic Ceramic Bending Tester 10kN with ISO CE Certification

• Hydraulic operation control with emergency stop button and overload protection
• High precision ball screw mechanism for accurate testing
• SUS304 stainless steel test area material for durability
• PC display device with load cell resolution of 1/250,000
• Meets GB/T3810.4-2016 and ISO10545-4:2014 ceramic tile testing standards
• Multiple grip options including tensile grip and tear force grip

• Standard: 100×100mm to 1000×1000mm (three specifications available)
• Customizable up to 1200×1200mm upon request

This universal tensile testing machine is designed for MOR testing of ceramic pipes, glaze tiles, sanitary ware, electric ceramics, and fire-resistance materials. With fixture replacement, it can also perform burst resistance testing and measure flexural/compressive strength of various ceramic products.

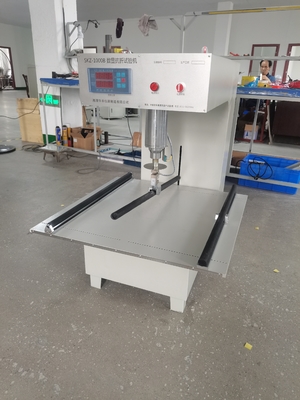

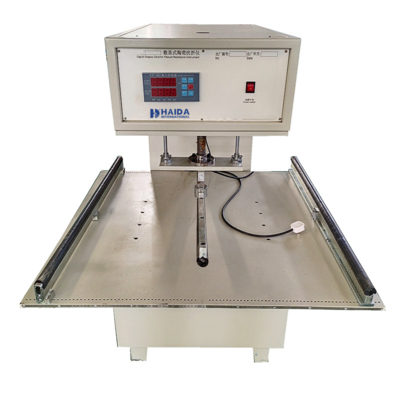

Ceramic Tester Detail View

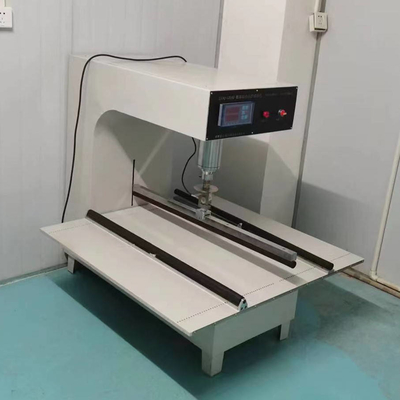

Ceramic Tester Operation View

• Touch screen microcomputer control with intuitive interface
• Real-time display of instantaneous pressure and peak pressure
• Digital loading speed display and adjustment
• Automatic calculation of destructive strength and fracture modulus
• Sample size input and parameter setting interface
• Built-in calibration functions
